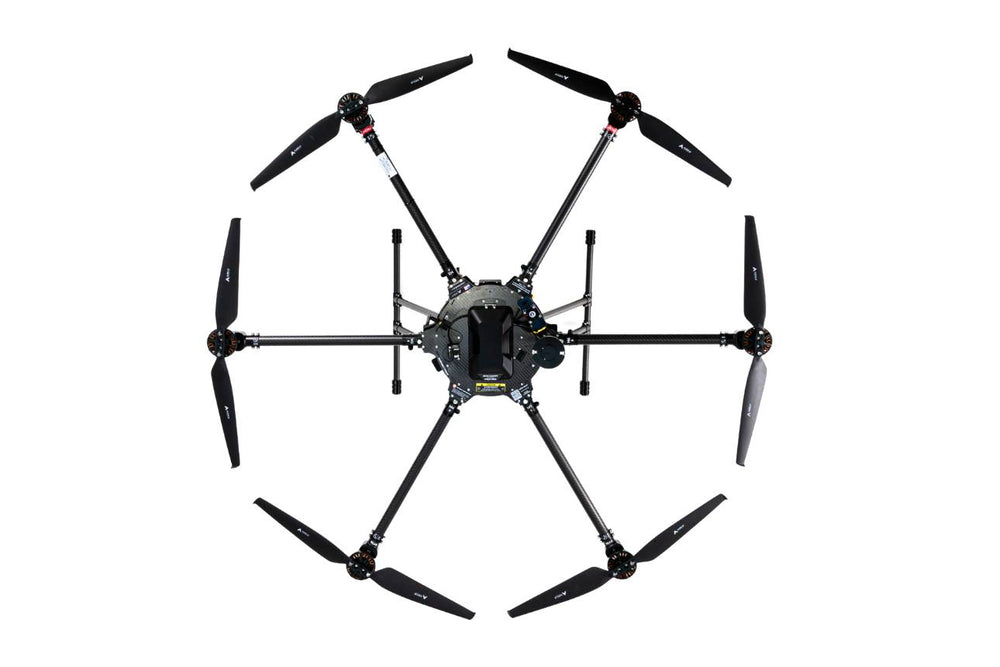

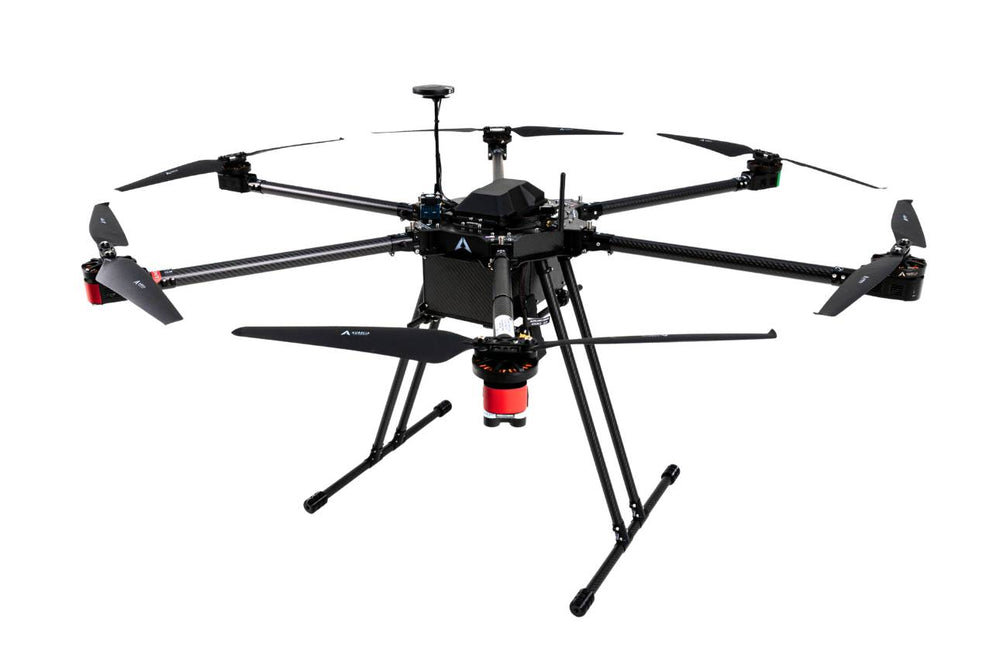

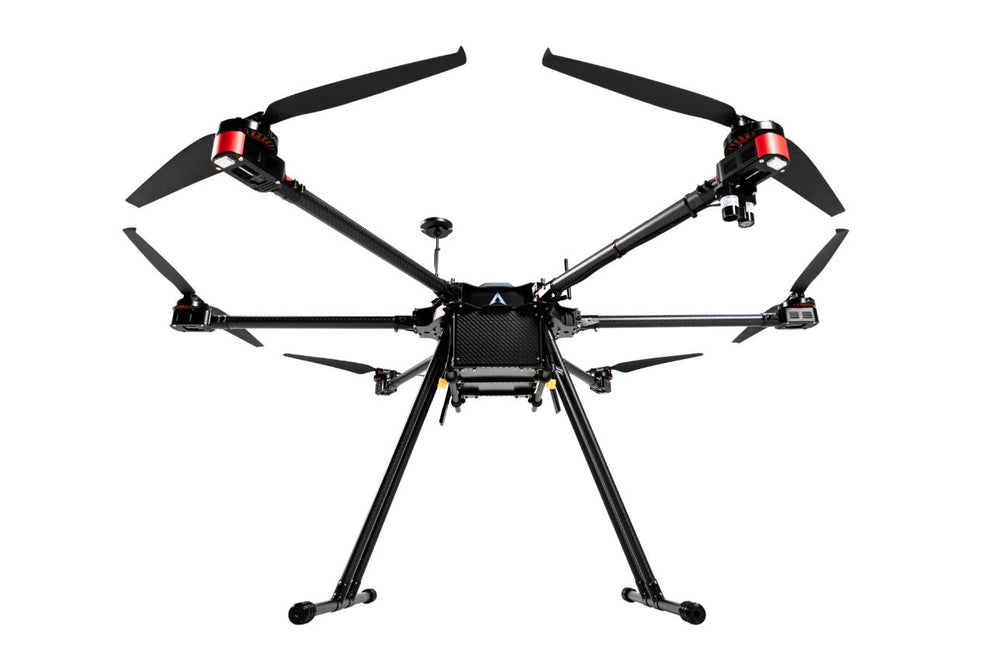

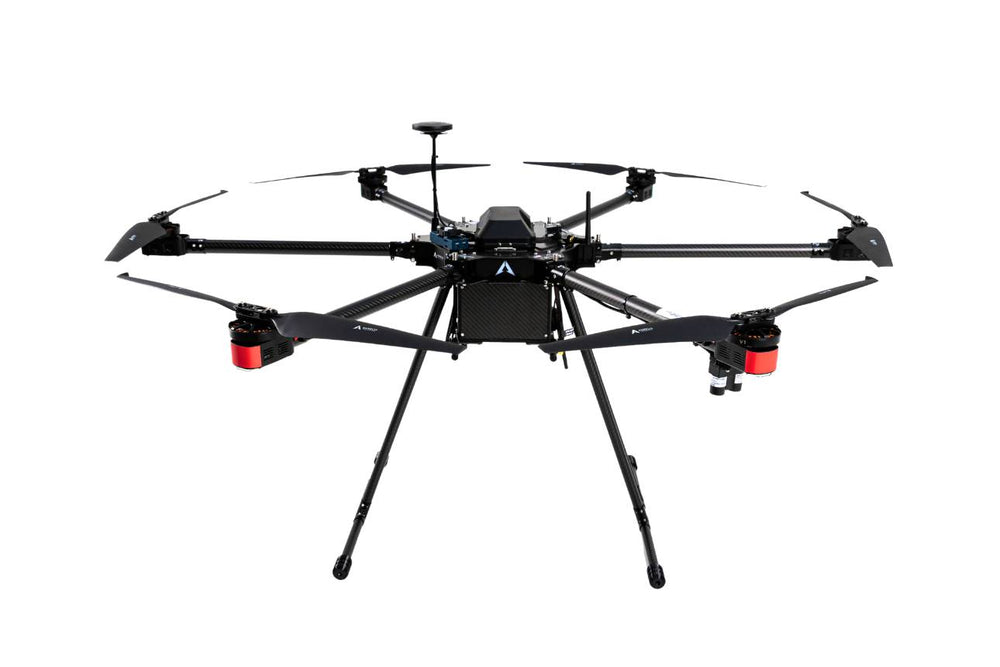

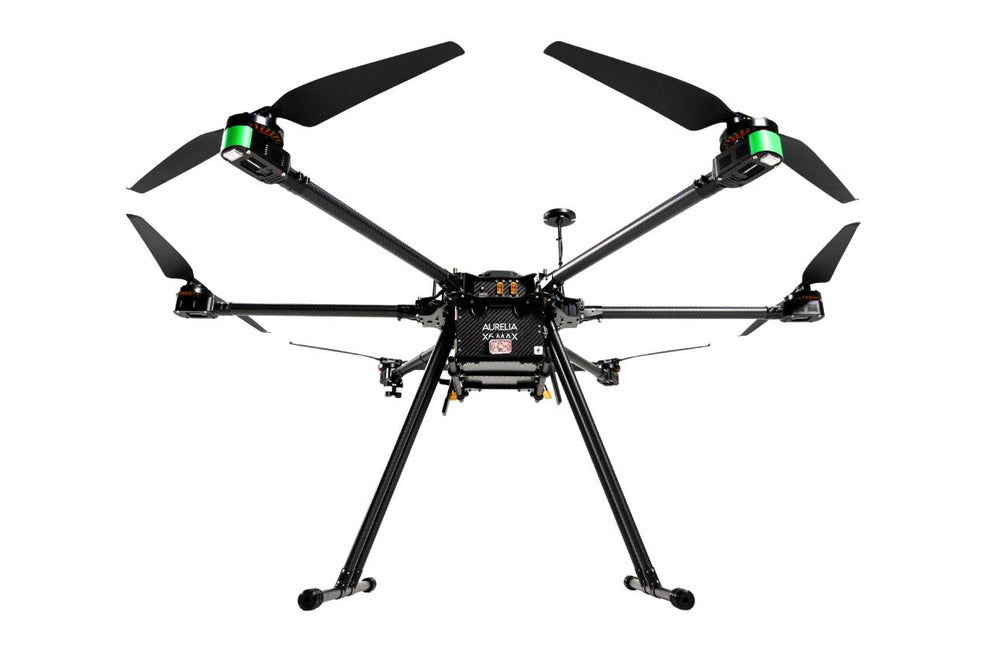

Let the Aurelia X6 MAX give your ideas flight! With a large payload bay, this platform designed for professional and industrial use features unbeatable versatility for a wide range of payloads and is capable of carrying up to 6 kg (13 lb). Offering best in class flight times, the X6 MAX can fly up to 70 minutes, depending on the payload weight.
Designed to be future proof, the Aurelia X6 MAX utilizes open source hardware and technology across the aircraft.
The Aurelia X6 MAX is delivered ready to fly out of the box with minimal setup required. Just install your payload and take it to the skies!
The Aurelia X6 MAX features an open-source Pixhawk flight controller, offering endless possibilities to customize your drone for your specific operation.
The standard configuration is set up with ArduPilot software, however, upon request, we can install PX4 instead.
We offer both the Cube Orange and Cube Blue flight controllers. You can learn more information about both options further down the page.
We are proud to support domestic supply chains in our products. The Aurelia X6 MAX features extensive use of U.S manufactured components throughout its systems.
The Cube Blue flight controller and onboard electronics are all manufactured in California, giving you the performance, reliability, and sophistication Aurelia Aerospace strives for.
The Aurelia X6 MAX is both NDAA 848 and TAA compliant.

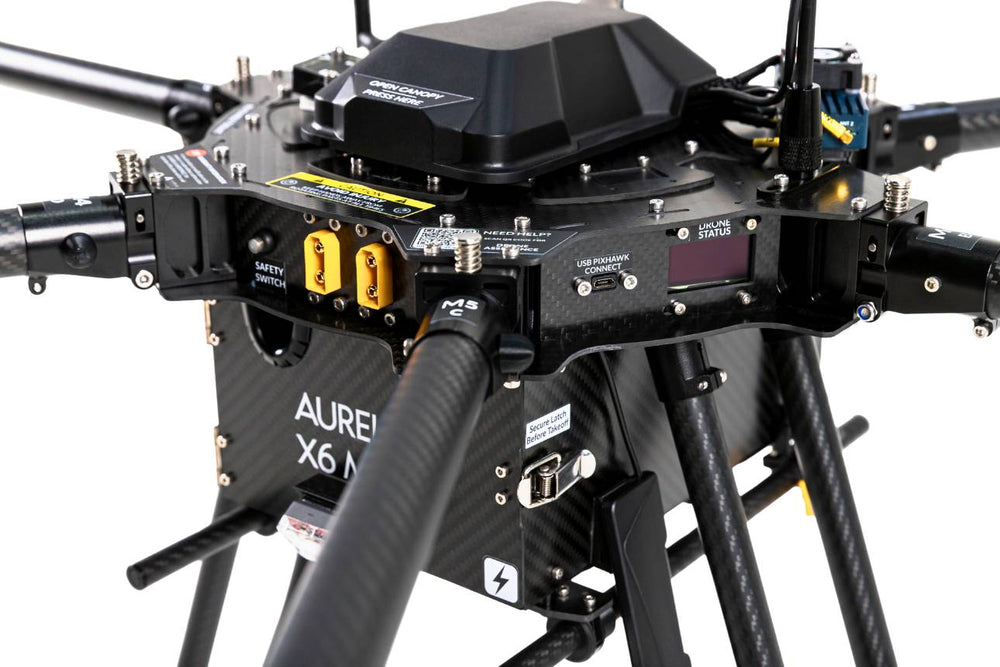

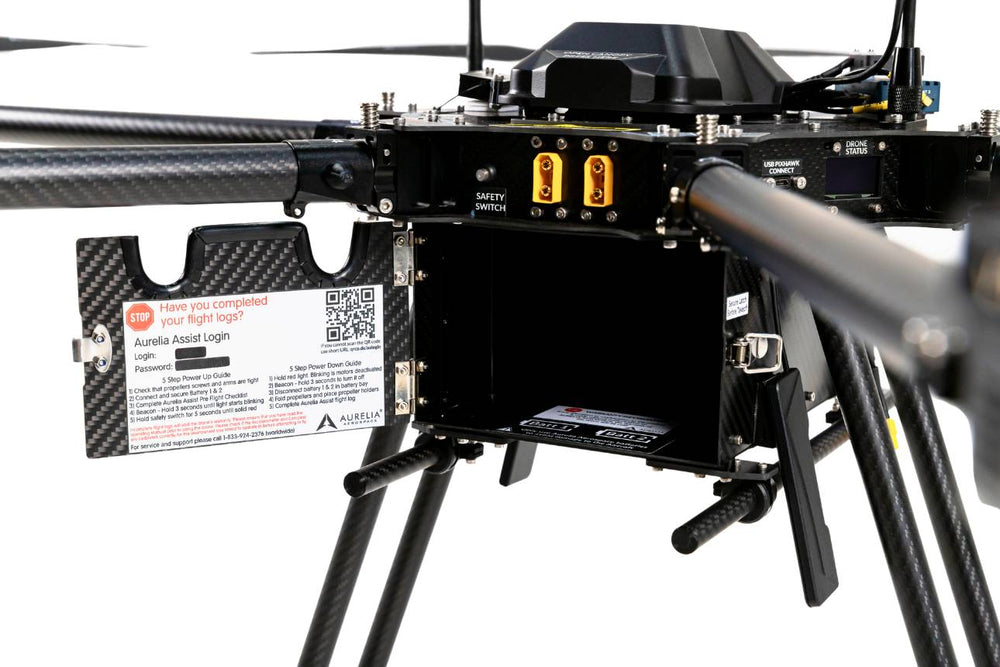

Designed for ease of use, the Aurelia X6 MAX features an LCD status display at the rear of the aircraft.

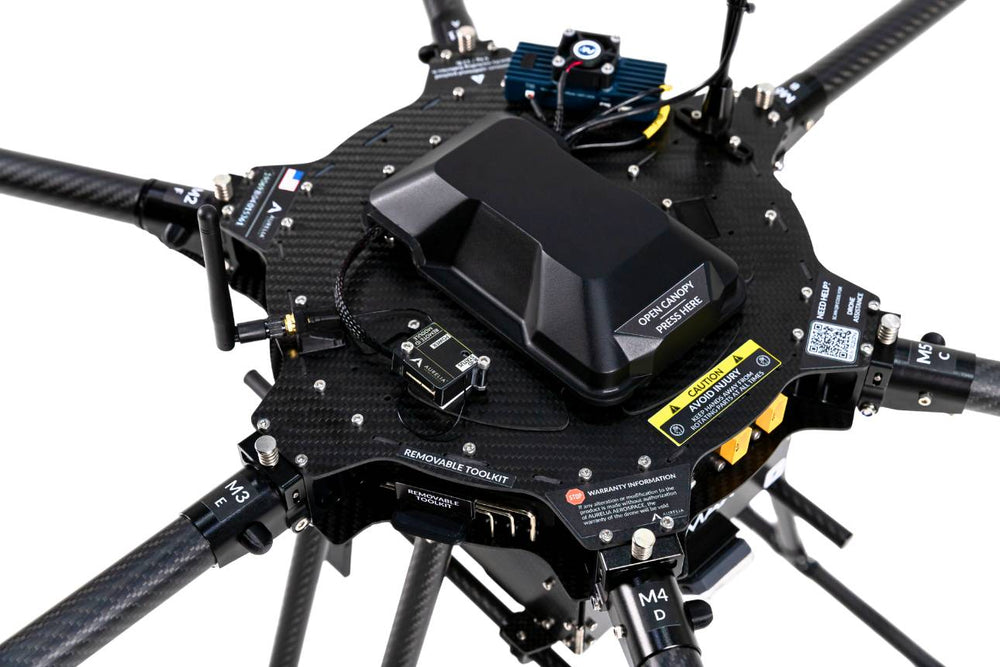

The status display gives you quick insight into the current flight mode, GPS satellites locked, failsafe warnings, battery levels, and more. Another design feature designed to enhance ease of use is an onboard mini toolkit.

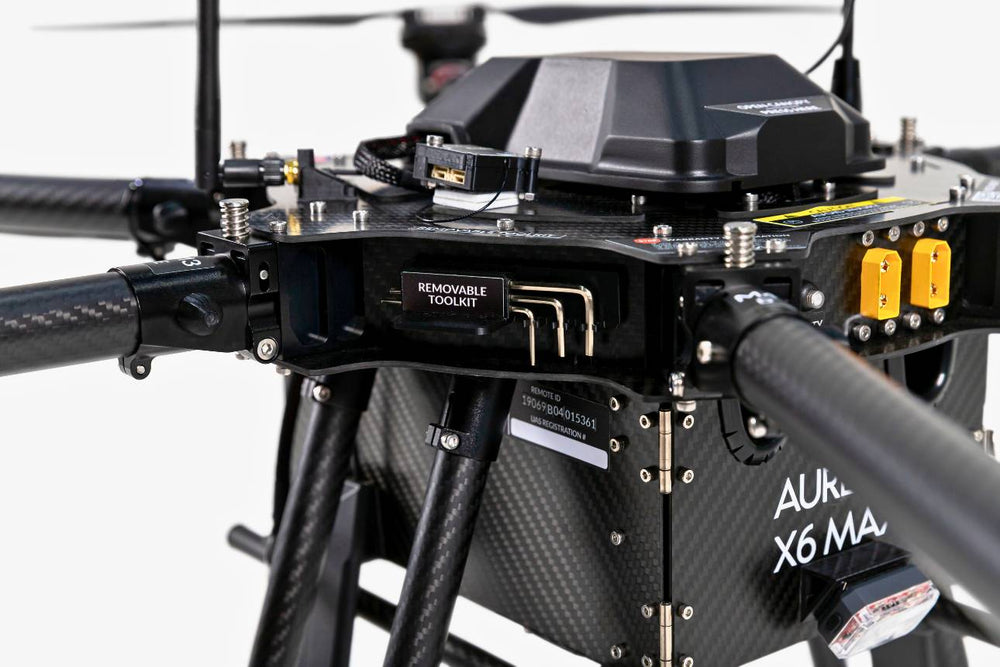

The toolkit features all the hex wrenches used in the Aurelia X6 MAX allowing you to quickly make repairs, or swap propellers when out in the field even if you forget your own tools!
Have peace of mind knowing that Lifetime Product Support comes included with the Aurelia X6 MAX.
Upon receiving your Aurelia X6 MAX, one of our technicians will schedule an introductory Zoom call with you to go over the aircraft and answer any questions you may have prior to the first flight.
If you ever require any further help with the Aurelia X6, you can simply scan the QR code sticker attached to your airframe to book a Zoom call.
This product support is included for the life of the Aurelia X6 MAX at no extra cost.

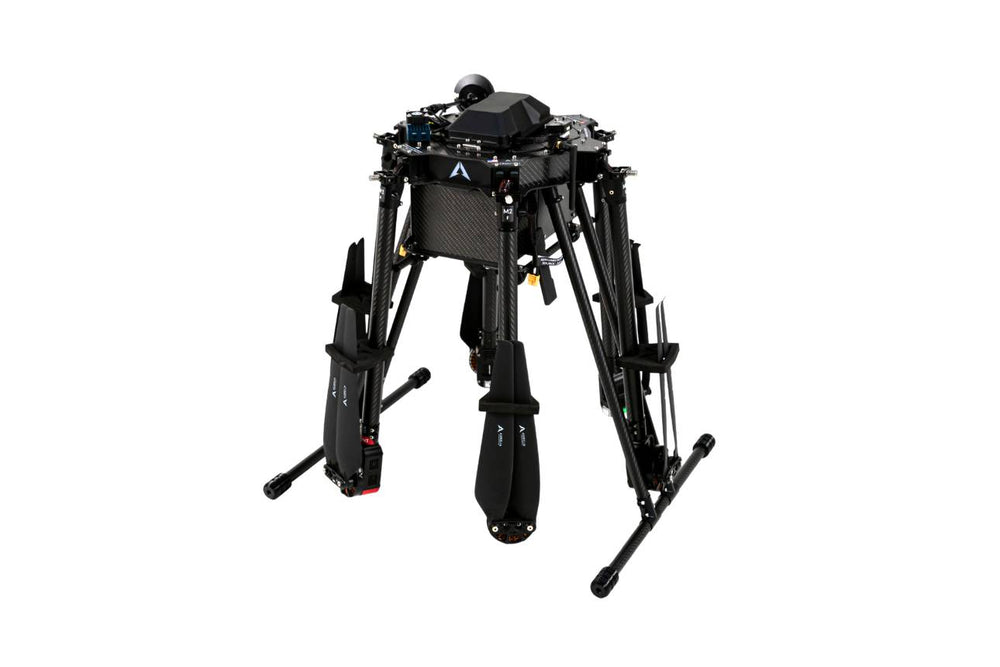

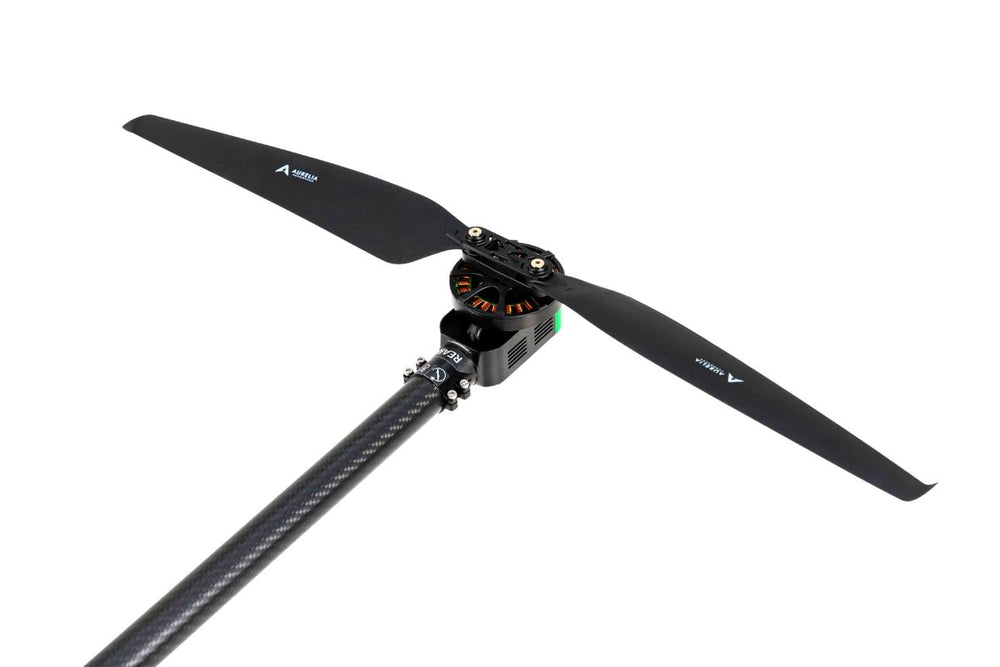

In less than 30 seconds, with a click of the button on each arm joint, the Aurelia X6 MAX can instantly fold down, allowing for quick disassembly and easy transportation.
With more than 20 available flight modes, including a new swarm mode (allowing you to fly multiple X6 aircraft at once),the drone has a flight mode for any kind of mission.
The free QGC, QGroundControl, mission planning software available for Windows, Mac, Android, and iOS devices allows you to set flight modes, program routes over a Google Maps overlay, set altitudes, geofencing, and much more. Learn more about QGroundControl by clicking here.
Alternatively, Mission Planner software (also free) is recommended for those looking for a mission planning software with additional functionality. Learn more about Mission Planner by clicking here.
As a platform that is relied on by some of the world's top research institutions, companies, and government agencies, extensive thought has gone into the design, and engineering of every aspect of the Aurelia X6 MAX to create a platform that delivers reliability, sophistication, performance, and versatility.
We are proud to offer a free 30-day trial program in partnership with Aurelia Aerospace.
The program allows registered businesses, government entities, and educational institutions to receive the Aurelia X6 MAX or another Aurelia Aerospace model to try for 30 days at no cost. There is no prepayment, no commitment, and no deposit necessary.
Please talk to one of our drone specialists to request a demo.
The Aurelia X6 MAX comes with a 6-month warranty. This warranty covers any components that fail on the drone within the first 6 months.
There is also a 2 year extended warranty available.
Mission Planning Software
Aurelia Aerospace is an official ArduPilot partner. ArduPilot is the most advanced, full-featured, and reliable drone open-source software. The ArduPilot Open-source software is constantly evolving and being improved by a diverse team of developers worldwide.
UAV Systems International is proud to offer special pricing to EDU, GOV, and non-profit agencies. Please contact one of our customer service representatives for more information.
If you have a payload that requires a larger space than the 430mm offered, please check our optional XL Landing Gear option offered at the bottom of this page. With the XL Landing gear option your payload clearance will increase to 550mm.
|4900g | 10.80 lb|
|9566g | 21.09 lb|
|6000g | 13.23 lb|
|UAV MTOW||15566g | 34.32 lb|
|35 mph | 56 km/h|
|20 mph | 32 km/h|
|AES-128 (HereLink Black, HereLink Blue, and RFD900X)|
|Operating Frequencies||915 MHz (Worldwide)|
433 MHz (Europe)
2.4 GHz (HereLink Ground Station Only)
3 mi (5 km)
with HereLink -
9.3 mi (15 km)
|Battery Type ||Standard:|
Lithium Ion (Li-Ion)

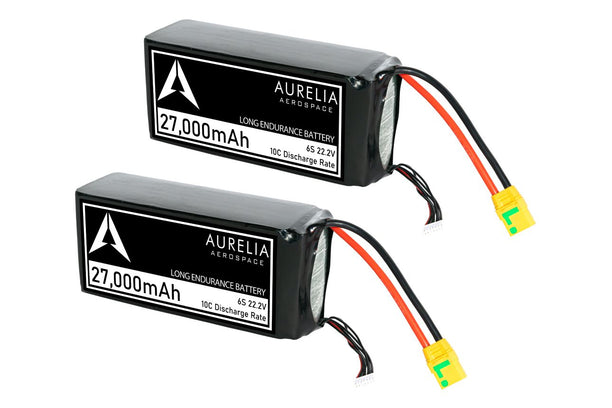

|Battery Capacity ||2x 27,000 mAh|
|Operating Temperature||-15C to +50C|
|GPS Constellations||GPS, GLONASS, Galileo, BeiDou, L2 Band (concurrently)|
|Rangefinder LiDAR Accuracy||+/- 2.5 cm|
|Rangefinder LiDAR Range||0 - 40 Meters|
|Redundancy||2 Accelerometer / 2 Gyroscope / 1 Mag|
|ADS-B||uAvionix 1090 with a 12 mile (20 km) range|
|Europe/UK Drone Class||C3 Class|
|Export Control Classification (ECCN)||EAR99|
The Aurelia X6 MAX is compliant with Remote ID requirements both in the USA and in the European Union/UMAK. All orders to the USA, UK, and European Union placed from Sept 2022 onwards will include a Remote ID module.
The Aurelia X6 MAX has an RPAS Safety assurance with Transport Canada to perform advanced operations in controlled airspace (Class A-F) and near people.
Are you interested in the Aurelia X6 MAX or one of our other models and would like to receive more documentation such as the user manual, and technical drawings?
Request more information here by completing the form and we will get back to you as soon as possible.
for Easy Mounting

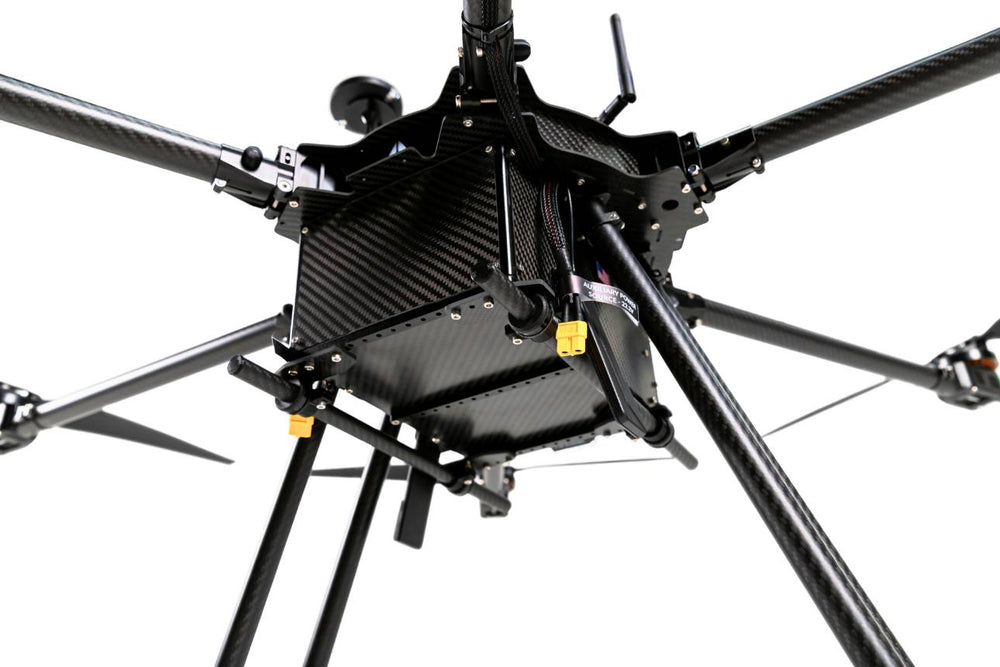

The Aurelia X6 MAX comes included with 2 payload railings installed under the battery bay. Attach payloads with ease by mounting your payload to the 2 rods, and adjusting the center of gravity as needed.
With one of our largest payload bays, the Aurelia X6 MAX gives you a high 430mm of clearance to install your equipment.

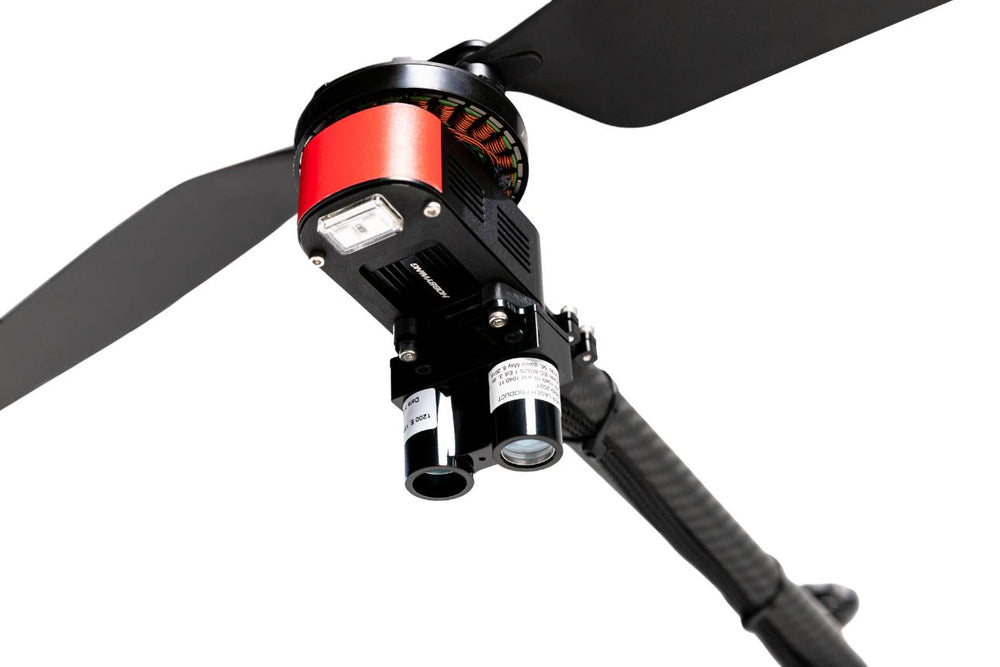

The inclusion of a rangefinder LIDAR gives the Aurelia X6 MAX accuracy of 2.5 cm in the vertical axis up to an altitude of 40 meters, allowing for smooth landings and steady flying at low altitudes.
Your Personal Assistant - 24/7
Record flight and maintenance logs, view flight checklists, check detailed weather reports, review no-fly zones and restricted flight zones around you, search a digital user manual, and much more with your virtual assistant, Aurelia Assist!
The application is easily accessible via any internet browser on a cell phone, tablet, or computer, and all data is stored securely in the cloud. No software downloads are needed.
Aurelia Assist Includes
Flight Simulator Software to Practice*
Avoid costly crashes and become an expert at flying your drone without ever touching your physical drone. Included with Aurelia Assist, the flight simulator compatible with Windows computers allows you to use the Radiomaster transmitter included with your Aurelia X6 MAX, connected to your computer via USB to practice flying.
Program flights using Mission Planner in the simulator, and see how changes to the aircraft's configuration affect its flight performance. See how wind, environmental changes, and more affect the performance of the drone using adjustable settings in the software.
*The simulator is used through the Steam platform

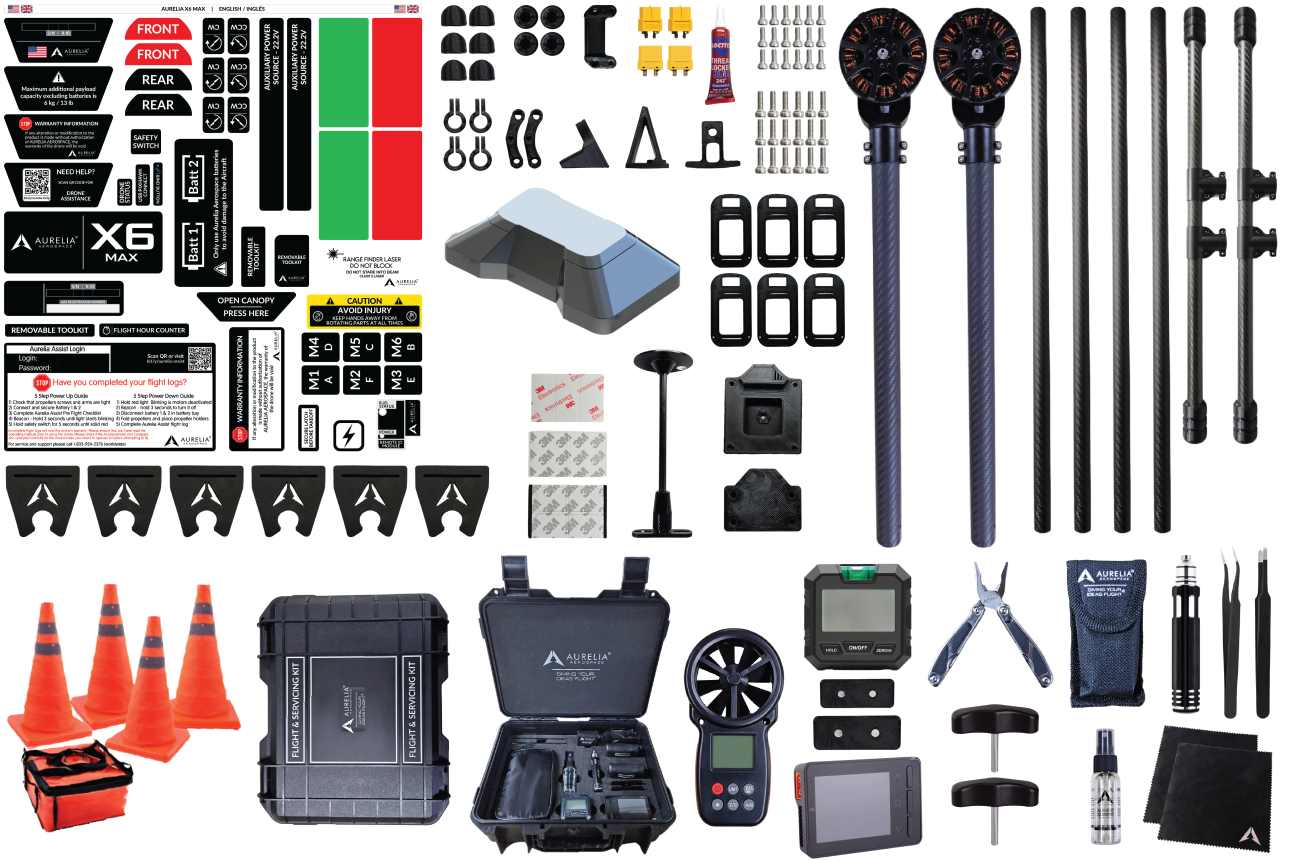

All of the items in the first image, plus the following in the second image;

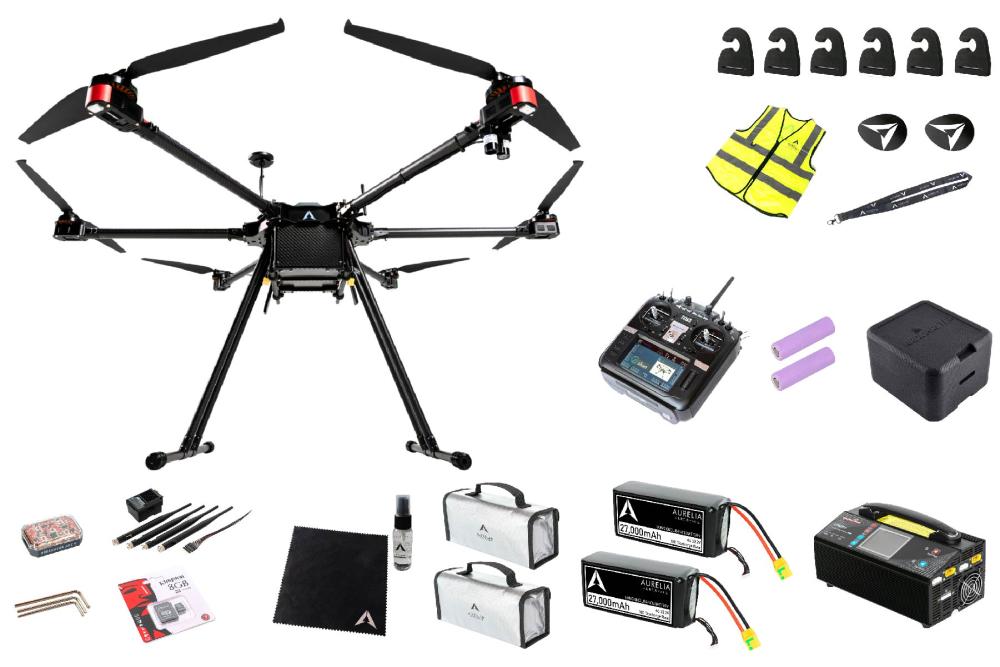

Save $720 With The Explorer Bundle
All of the items in the first image, plus the following in the second image;

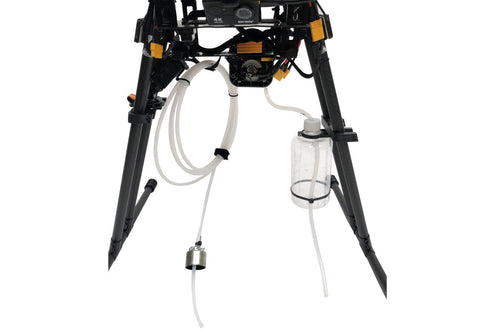

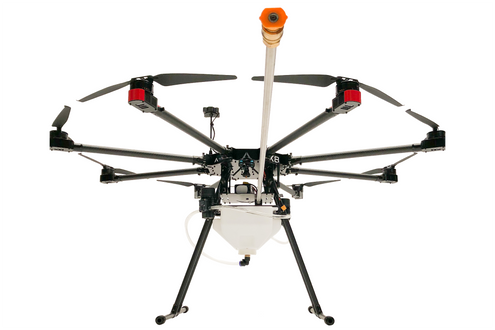

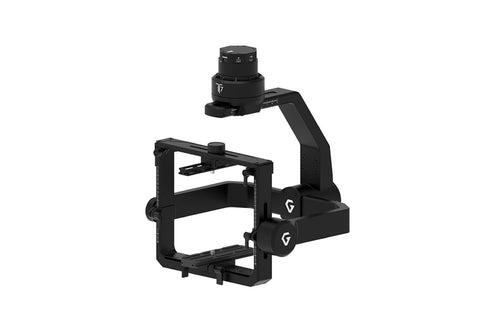

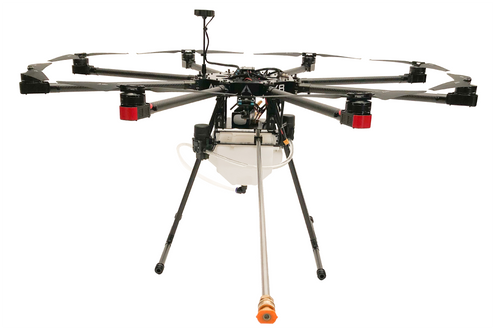

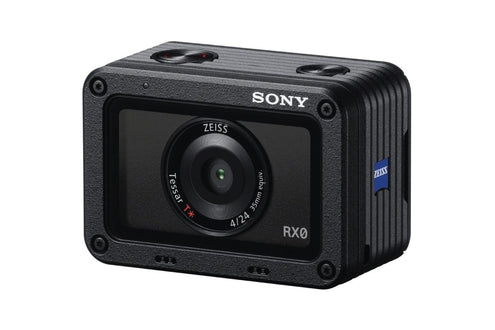

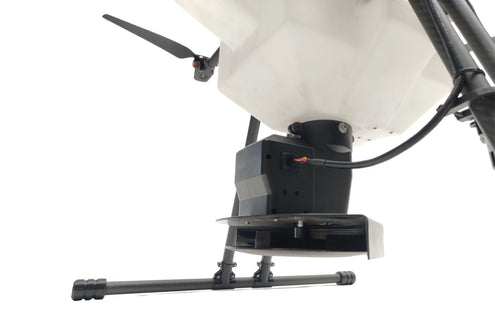

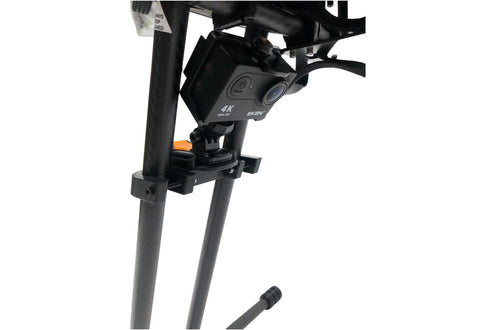

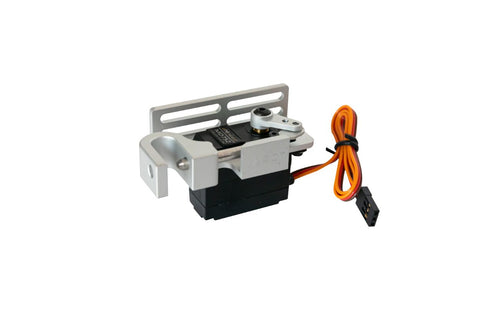

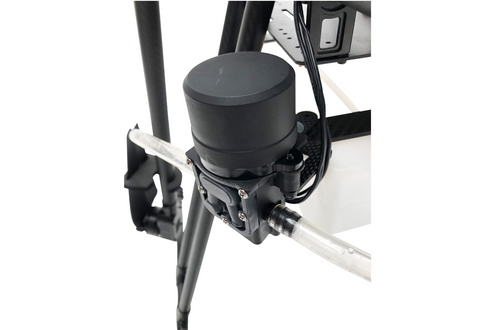

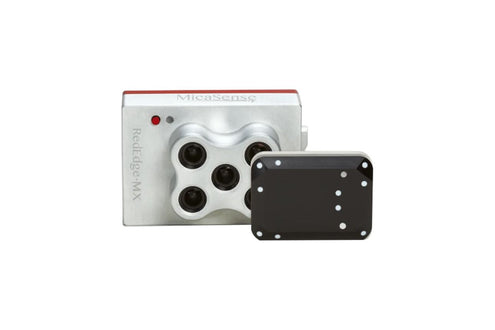

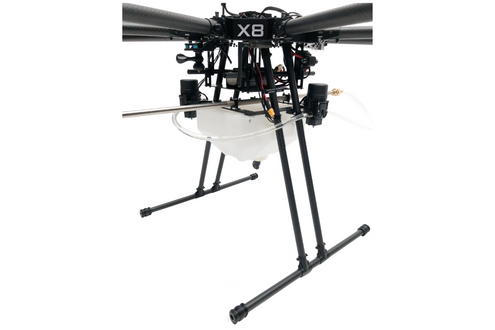

The payload is perhaps the most important part of your Aurelia X6 MAX. The X6 MAX features a large payload bay, allowing for a wide variety of payloads up to 6 kg (13 lb).
Below are some of our most popular payload options, however, if you have any questions about configuring your payload, or would like to add a payload that is not listed here, please do not hesitate to reach out to one of our drone specialists.
We offer a wide variety of add-ons that might not be listed on this page. In case you require any other add-on on your drone, please reach out to our drone specialist who can create the custom order for you. We customize drones for any need!
UAV Systems International is proud to be an authorized premium reseller of Aurelia Aerospace products. UAV Systems International, in addition to Aurelia Aerospace, can provide service and support for the lifetime of the product to all of our customers worldwide.
At Aurelia Aerospace our mission is to give our customers ideas flight. Whether that is using one of our platforms to perform medical deliveries or carrying a specialized sensor for research, we want to give your ideas flight. That is why we offer all customers the chance to try our products for 30 days with no commitment. If after 30 days you are not happy with our product for whatever reason, we will refund the total amount for your purchase, plus give you $100 to use towards another platform from any manufacturer, ensuring you are able to give your ideas flight.
