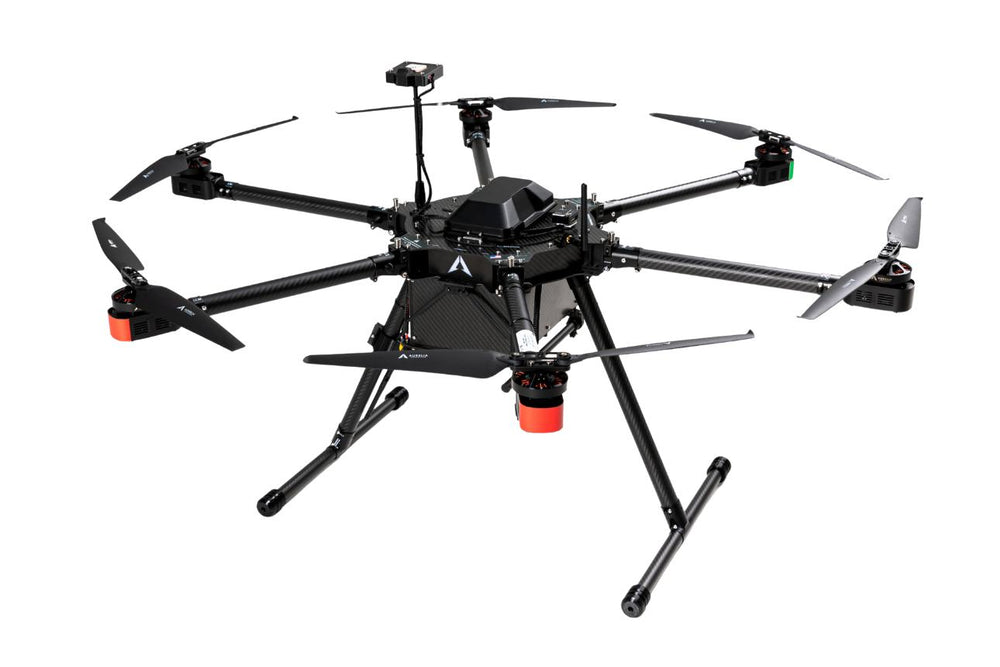

    Aurelia X6 Standard - Ready To Fly

    $ 3,899.95 USD
    • Barcode:

    Giving Flight To Clients Ideas Worldwide

    Giving Your Ideas Flight!

    Let the Aurelia X6 Standard give your ideas flight! With a large payload bay, this platform designed for professional and industrial use features unbeatable versatility for a wide range of payloads, and is capable of carrying up to 5 kg (11 lb.).

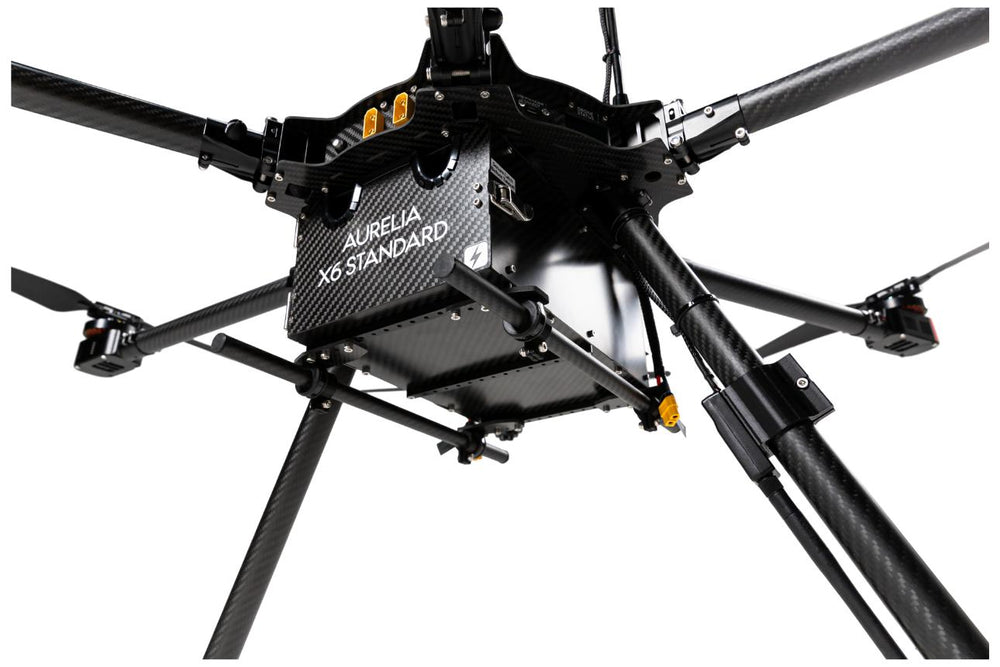

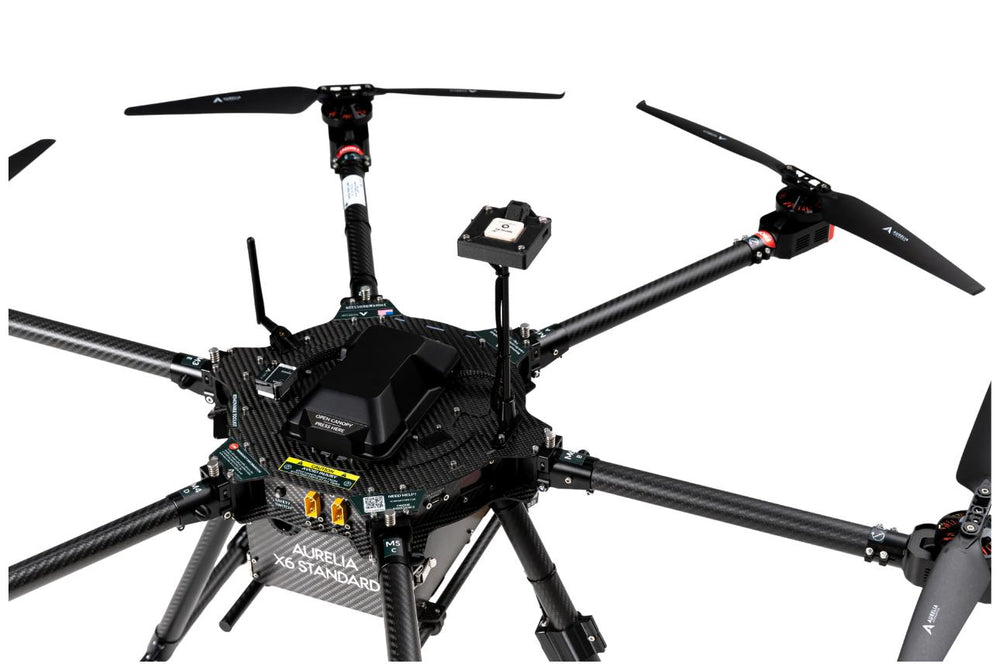

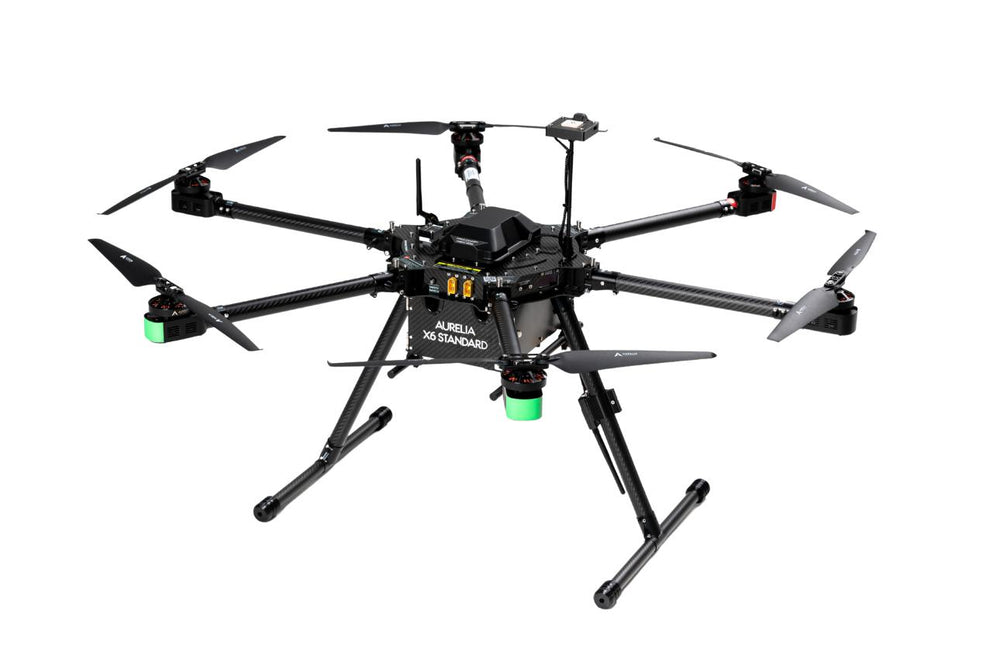

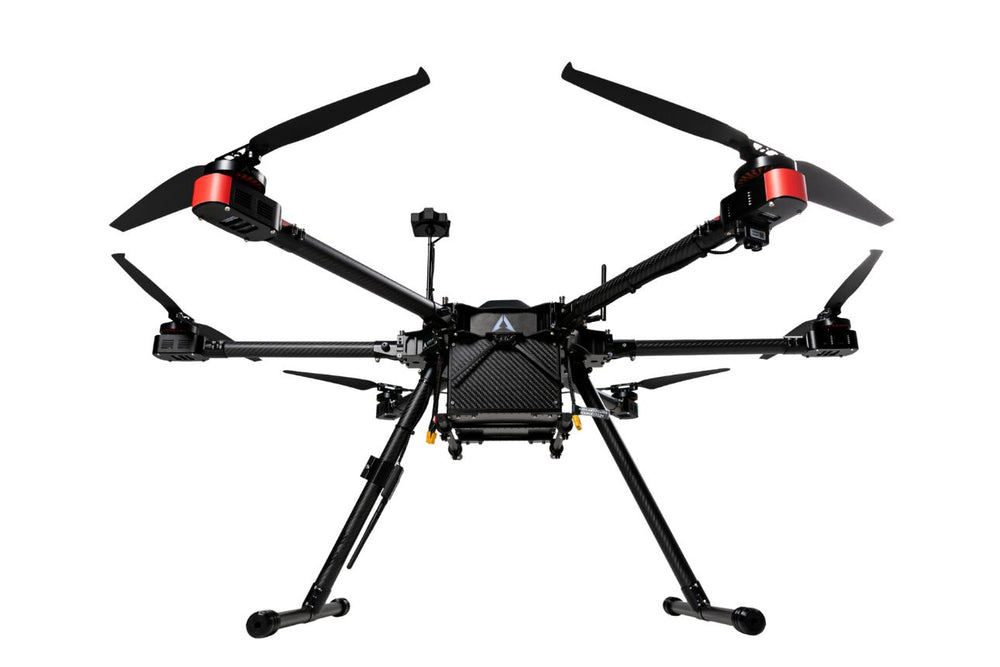

    Aurelia X6 Standard Front View

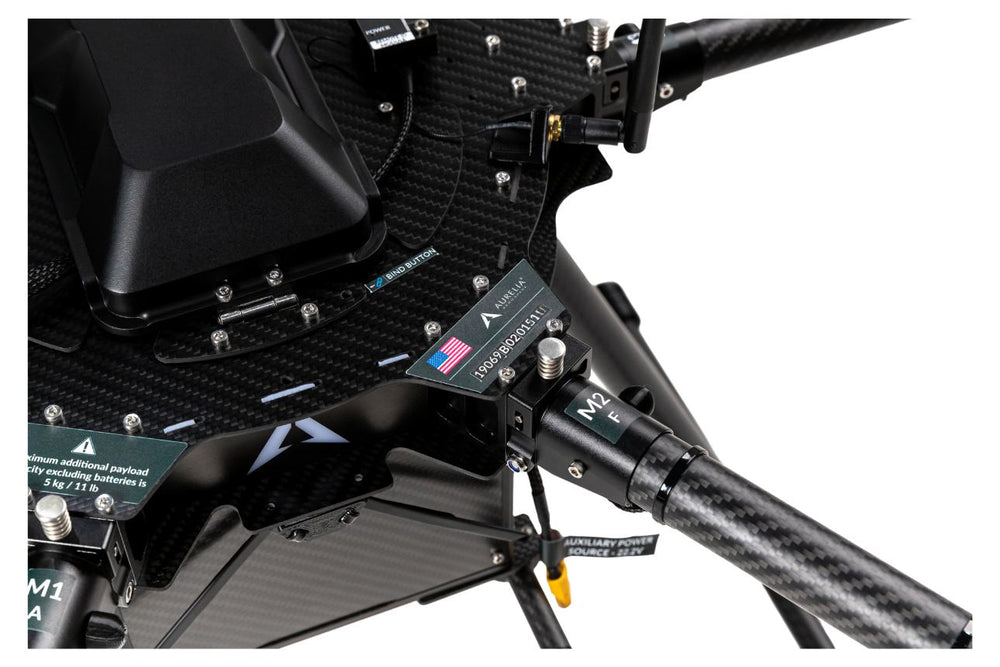

    Aurelia X6 Standard Drone Plate

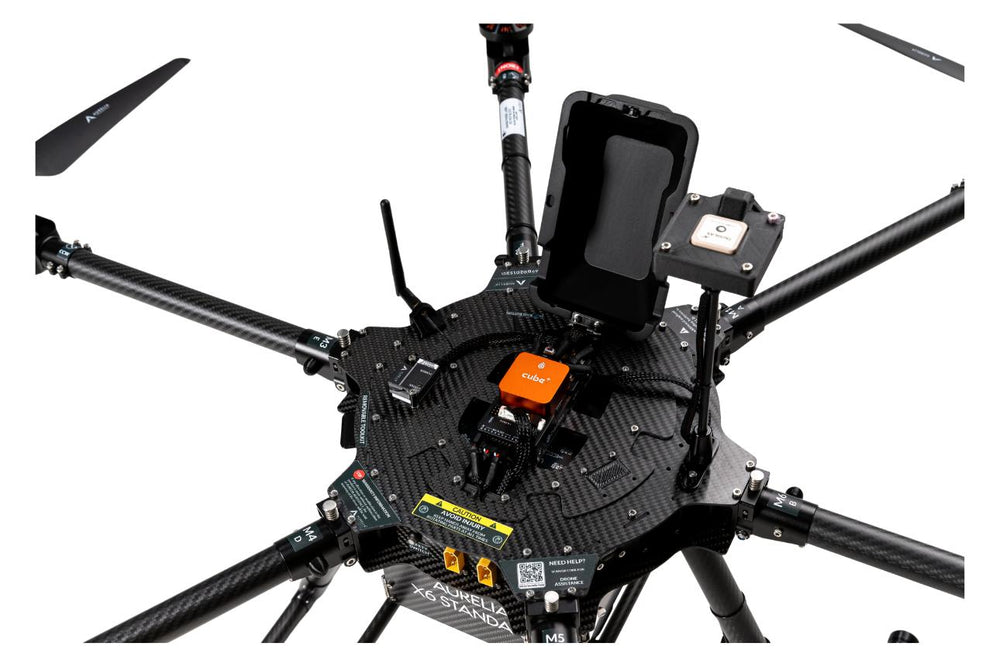

    Pixhawk Flight Controller

    The Aurelia X6 Standard features an open source Pixhawk flight controller, offering endless possibilities to customize your drone for your specific operation.

    The standard configuration is setup with Ardupilot software, however, upon request we can install PX4 instead.

    Three different flight Pixhawk controllers are offered, more information about each is available at the bottom of this page.

    Made In USA

    We are proud to support domestic supply chains in our products. The Aurelia X6 Standard features extensive use of U.S manufactured components throughout its systems. Our flight controllers, and onboard electronics are all manufactured in California, giving you the performance, reliability, and sophistication Aurelia Aerospace strives for.

    The Aurelia X6 Standard is both NDAA 848 and TAA compliant.

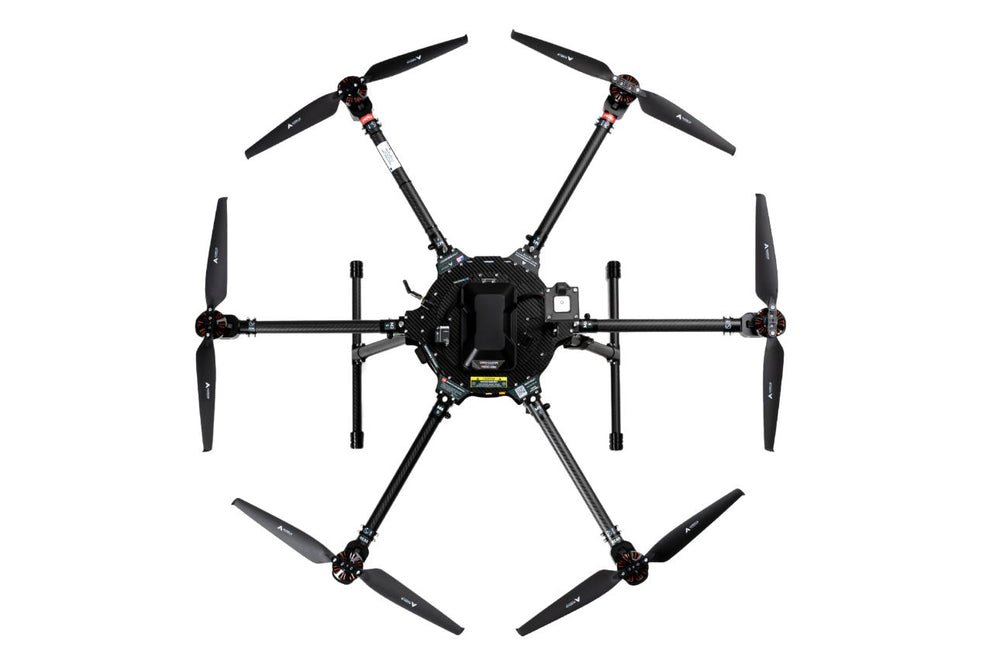

    Aurelia X6 Standard Top Plate

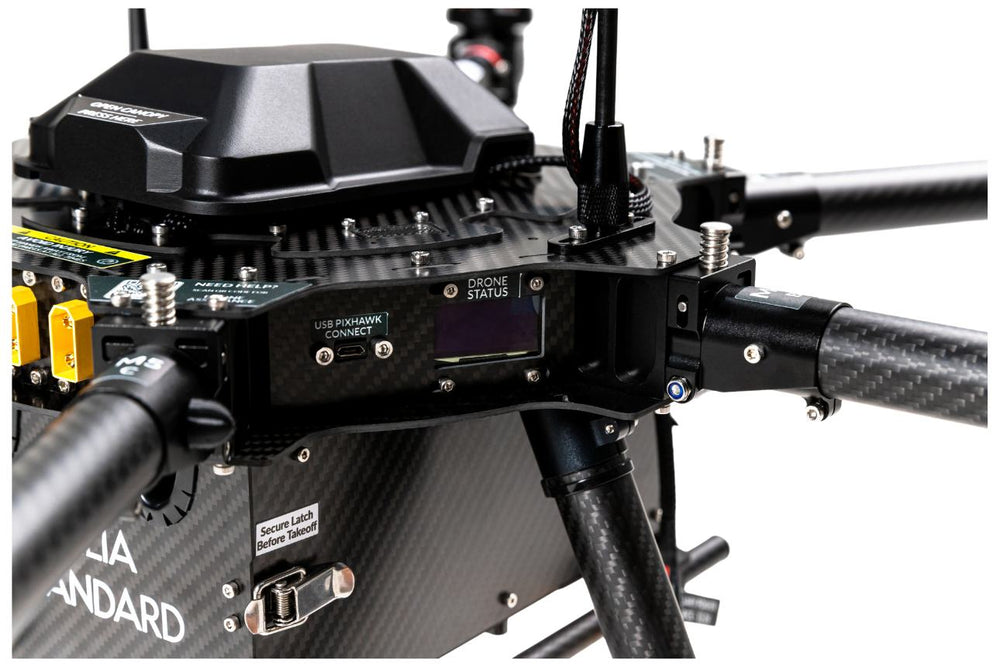

    Aurelia LCD screen

    Integrated LCD Status Panel

    Designed for ease of use, the Aurelia X6 Standard features a LCD status display at the rear of the aircraft. This status display gives you quick insight into the current flight mode, GPS satellites locked, failsafe warnings, battery levels and more.

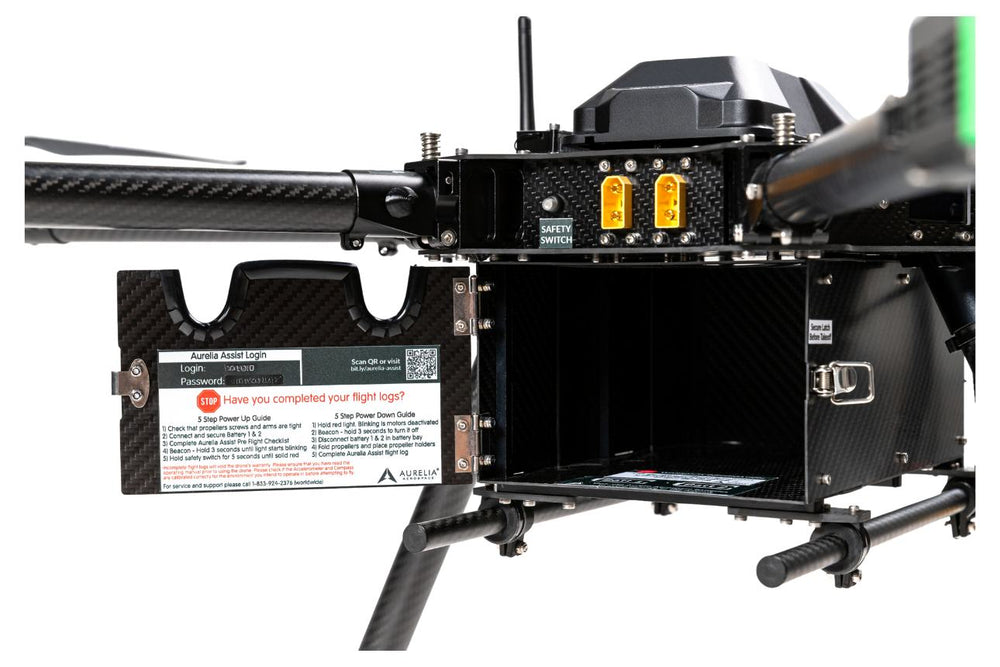

    Another design feature designed to enhance ease of use is an onboard mini toolkit. This toolkit features all the hex wrenches used in the Aurelia X6 Standard allowing you to quickly make repairs, or swap propellers when out in the field even if you forget your own tools!

    Fully Foldable For Easy Transport

    In less than 30 seconds, with a click of the button on each arm joint, the Aurelia X6 Standard can instantly fold down, allowing for quick disassembly and easy transportation.

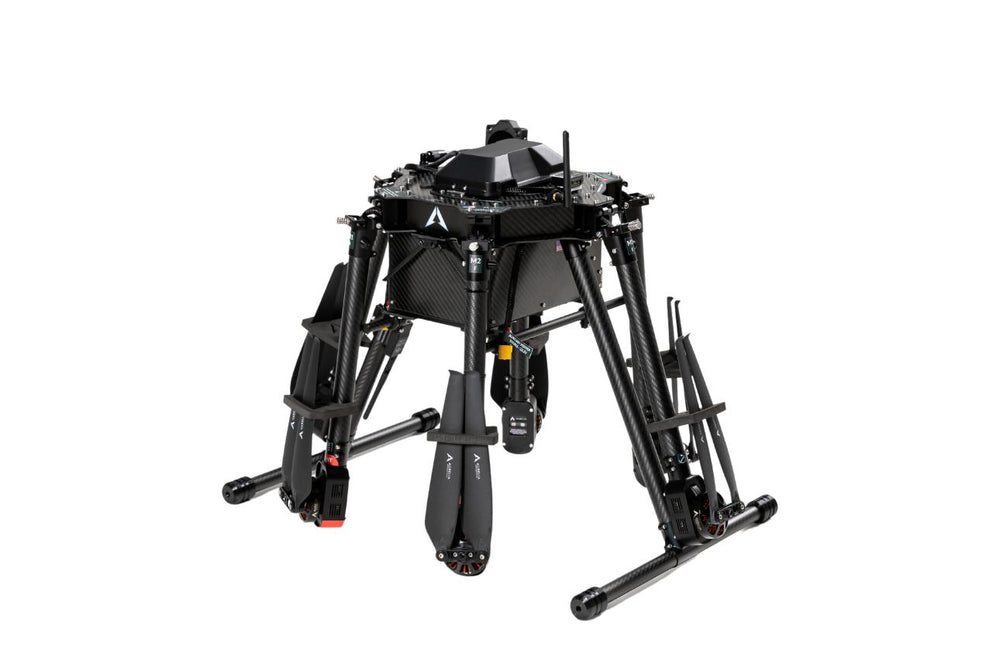

    Aurelia X6 Standard Folded

    Mission Planning Software

    With more than 20 available flight modes, the Aurelia X6 Standard has a flight mode for any mission. The free Q Ground Control mission planning software available for Windows, Mac, Android, and iOS devices allows you to set flight modes, program routes over a Google Maps overlay, set altitudes, geofencing, and much more. Learn more about Q Ground Control by clicking here

    Alternatively, Mission Planner software (also free) is recommended for those looking for a mission planning software with additional functionality. Learn more about Mission Planner by clicking here

    Designed For Reliability,
    Sophistication, & Performance

    As a platform that is relied on by some of the worlds top research institutions, companies, and government agencies, extensive thought has went into the design, and engineering of every aspect of the Aurelia X6 Standard to create a platform that delivers reliability, sophistication, and performance.

    6-Month Warranty

    The Aurelia X6 Standard comes with a 6-month warranty. This warranty covers any components that fail on the drone within the first 6 months.

    Open-source software

    UAV Systems International is an official partner of Ardupilot. Ardupilot is the most advanced, full featured, and reliable open source software for drones. The open source software is constantly evolving and being improved upon by a diverse team of developers around the world.

    EDU/GOV Pricing

    UAV Systems International is proud to offer special pricing to EDU and GOV agencies. Please contact one of our customer service representatives for more information.

    Specifications

    Specs
    Max Flight Time 30 Mins

    UAV Empty Weight4254g
    UAV Weight Incl Batteries7170g
    Payload Capability5000g
    UAV MTOW12170g
    Max Flight Speed35mph (56km/h)
    Max Wind Resistance20mph (32km/h)
    Max Service Ceiling3000m ASL
    Specs
    Operating Frequencies915MHZ (Worldwide)

    433MHZ (Europe)

    5.8Ghz (Herelink Ground Station Only)
    Operating RangeStandard - 1.5 miles (2.4km)

    With Herelink - 3.0 miles (5km)
    Battery Type Lithium Polymer (LiPo)
    Battery Capacity 2x 10,000mAh
    Battery Voltage22.2V
    Specs
    GPS uBlox M9N
    GPS ConstellationsGPS, GLONASS, Galileo, BeiDou
    Rangefinder LIDAR Accuracy+/- 4cm
    Rangefinder LIDAR Range0 - 12 Meters
    CompassRM3100
    Redundancy2 Accelerometer / 2 Gyroscope / 1 Mag


    ADS-B (Cube Only)uAvionix 1090 with 12 mile (20km) range

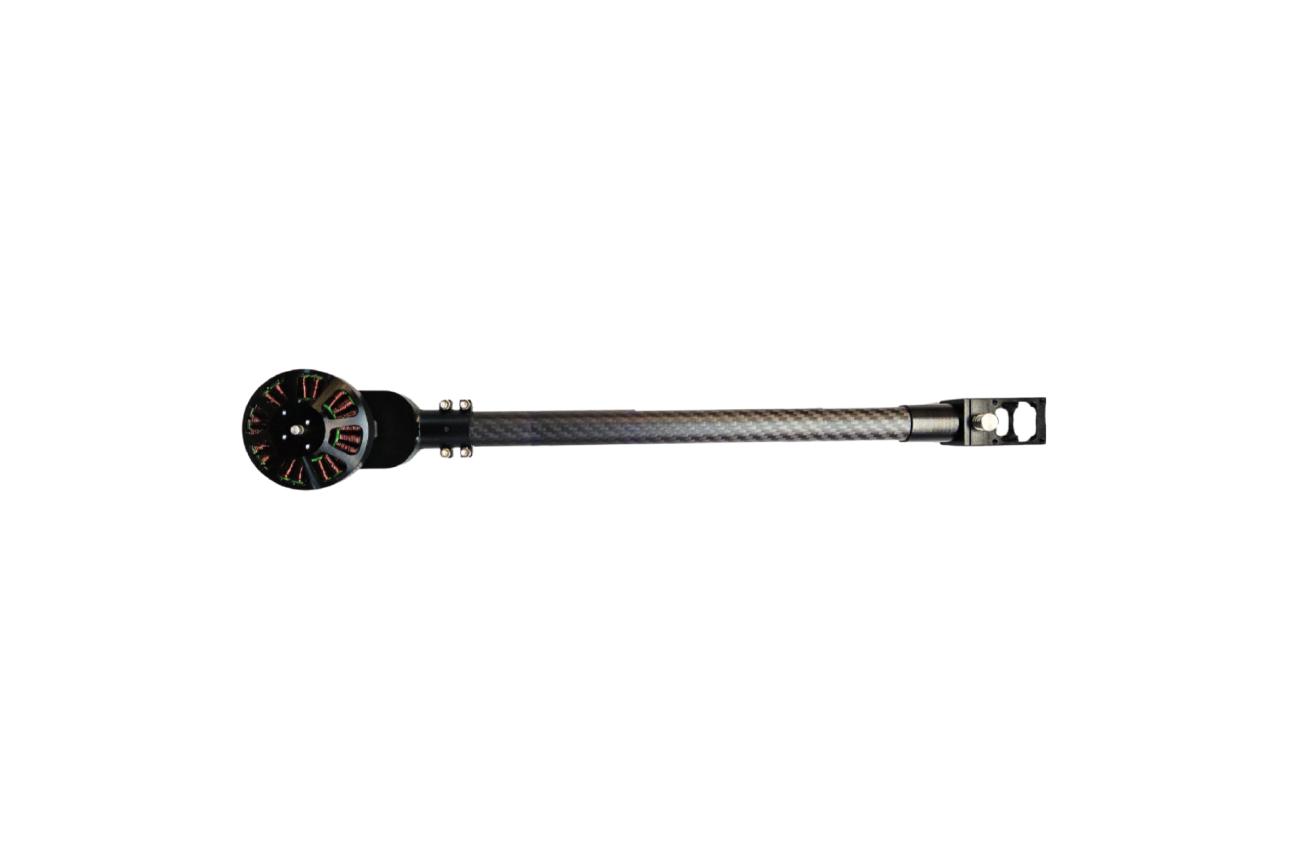

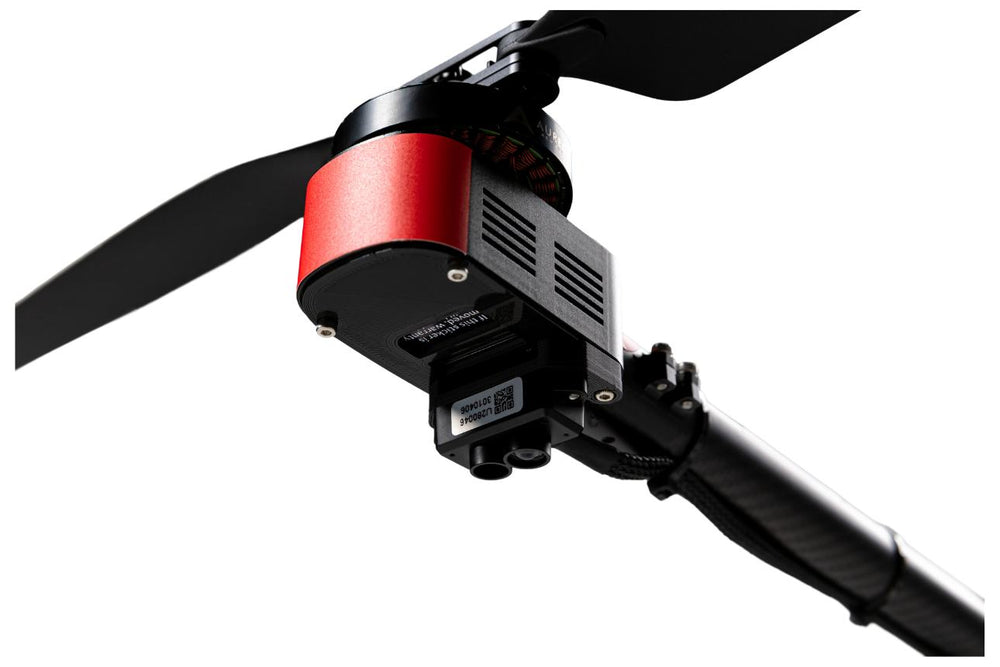

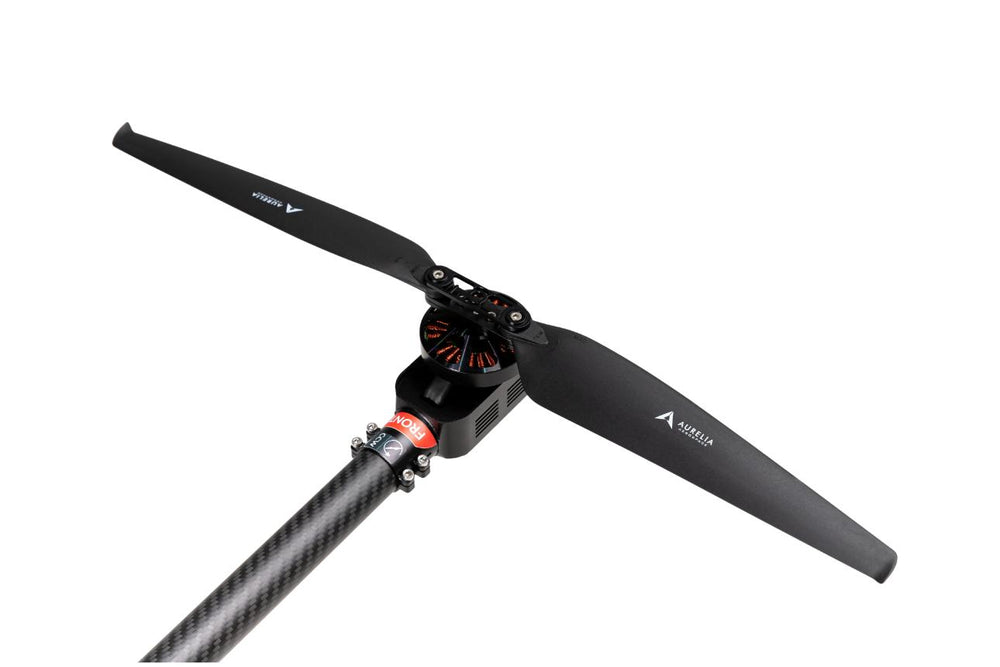

    Efficient Motors

    Aurelia Aerospace custom designed motors offer incredible efficiency resulting in up to 30 minutes of flying on the standard included batteries. Upon request, for an additional charge we can offer IP rated fully enclosed motors (slightly less efficient), designed for operation in dusty and wet environments

    The Hexacopter design allows the Aurelia X6 Standard to operate with only 5 functional motors, allowing for increased reliability and protection of your payload.

    In the event the Aurelia X6 Standard is involved In a crash, the propellers are designed to shear, protecting the motors and electronics from costly damage.

    High Quality Electronics

    Electronics for the Aurelia X6 Standard have been custom designed and fabricated by Aurelia Aerospace, designed to deliver reliability, sophistication, and performance.

    Precision

    The inclusion of a rangefinder LIDAR gives the Aurelia X6 Standard an accuracy of 4 cm in the vertical axis up to an altitude of 12 meters, allowing for smooth landings and steady flying at low altitudes.

    Aurelia Assist - Your Personal Assistant 24/7

    Manage flight logs, maintain, checklists, get instant support, order spare parts and accessories, review detailed weather information, check local drones laws/airspace restrictions, and much much more with your virtual assistant, Aurelia Assist!

    Aurelia Assist - Includes Flight Simulator Software For Practice

    Avoid costly crashes and become an expert at flying your Aurelia X6 without ever touching your physical drone. Included with Aurelia Assist, the flight simulator compatible with Windows computers allows you to use the Radiomaster transmitter included with your Aurelia X6, connected to your computer via USB to practice flying. Program flights using Mission Planner in the simulator, and see how changes to the aircraft's configuration affect its flight performance. See how wind, environmental changes and more affect the performance of the drone using adjustable settings in the software.

    Aurelia Assist Package Includes

    • Aurelia Assist App with Flight Logs, Flight Checklists, Support, Spare Parts & Accessories Ordering, Digital Searchable User Manual, Live Drone Law Map, Worldwide Drone Laws, Live Weather Report Map, Product Service Bulletins, & Third Party App Store
    • Flight Simulator Software To Practice Flying Aurelia X6 Standard
    • Free Priority Shipping On All Spare Parts Purchases
    • $500 of Revolving Account Credit To Instantly Purchase Spare Parts With No Upfront Payment
    • Onboard 4G LTE Module Allows Our Technicians To Quickly & Remotely Diagnose Any Problems & Provide Quick Support (Optional)
    • Random Remote Flight Log Audits To Ensure All Systems Are Working Well & Properly Calibrated (Optional)
    • Free Ongoing Skype/Zoom Support Available
    • 50% Discount on $199.99 Engineering Modification Approvals
    • Drone Insurance Discounts

    Aurelia Drones In Action

    What's Included?

    Aurelia X6 Standard What is included
    • 1x Aurelia X6 Standard UAV Configured &
            Ready To Fly

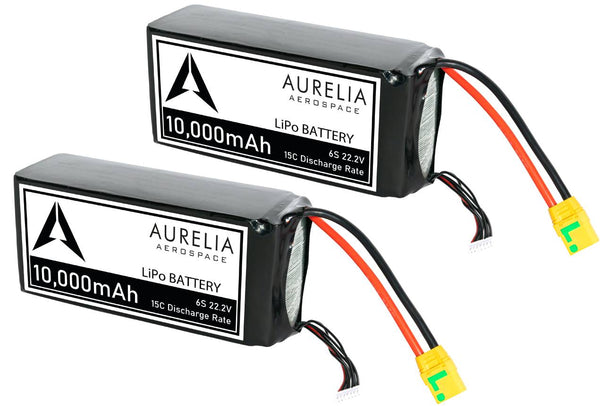

    • 2x Aurelia 10,000mAh 6S 22.2V
            LiPo Batteries
    • 1x SkyRC T200 LiPo Balance Charger
    • 2x LiPo Firesafe Storage Bags With Handle
    • 2x 18650 Li-Ion Controller Batteries (Radiomaster Option)
    • 1x Radiomaster TX16S Controller (Radiomaster Option)
    • 2x Spare Propeller With Storage Bag
    • 1x Radiomaster TX16S Transmitter Case (Radiomaster Option)
    • 1x Aurelia Aerospace Safety Vest

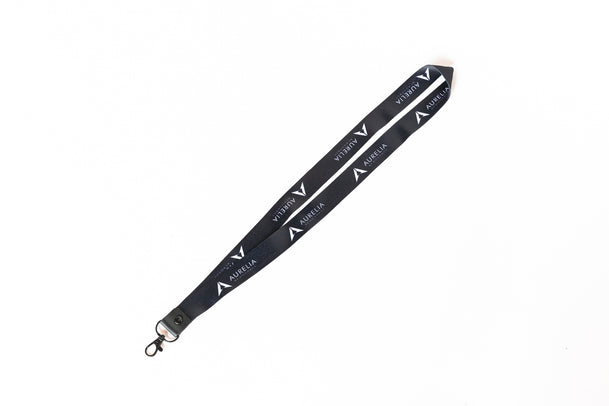

    • 1x Aurelia Aerospace Lanyard
    • 2x Aurelia Aerospace Stickers
    • 1x Mini Tool Kit

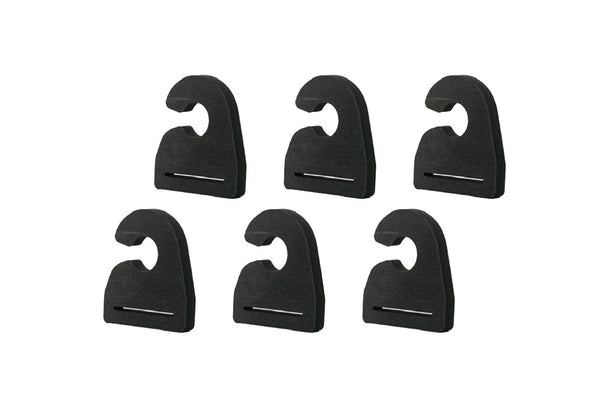

    • 6x Propeller Arm Holders
    • 1x Ground Telemetry Radio
            (915mHz/433mHz (EU))
    • 1x 8 GB Micro SD Card

    1 - Choose Your Bundle

    Starter Bundle

    Aurelia X6 Standard package
    • All of the items above




















    Explorer Bundle

    Aurelia X6 Standard packageAurelia X6 Standard Explorer Package
    • All of the items in the first image, plus the following in the second image;
    • 1x Spare Propeller Set (6 pcs)
    • 1x Travel Case
    • 1x Spare Battery Set (2 pcs)
    • 2x LiPo Battery Bags
    • 1x Aurelia Drone Landing Pad

    Save $300 With The Explorer Bundle

    Ultimate Bundle

    Aurelia X6 Standard package
    • All of the items in the first image, plus the following in the second image;
    • 2x Spare Propeller Set (12 pcs)
    • 1x Travel Case
    • 2x Spare Battery Set (4 pcs)
    • 4x LiPo Battery Bags
    • 1x Aurelia Drone Landing Pad
    • 1x Fast Charger
    • 2x Spare Motor

    2 - Choose Your Transmitter

    Radiomaster TX16S (Included)

    Our standard transmitter included with the Aurelia X6 Standard is the Radiomaster TX16S. This transmitter features the following,

    • 16 channels
    • 4.3" color display to see live telemetry data from the aircraft
    • Compatible with OpenTX
    • 6 flight mode buttons
    • Multi - protocol

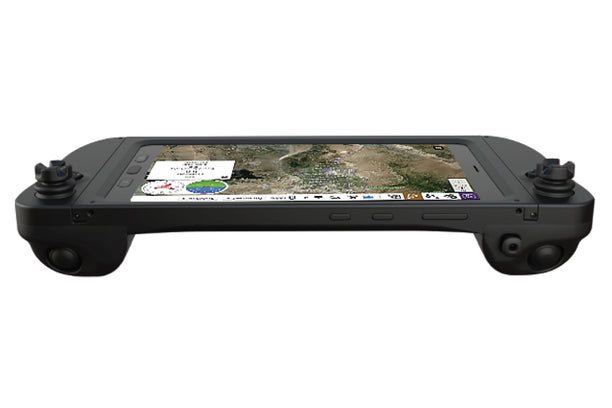

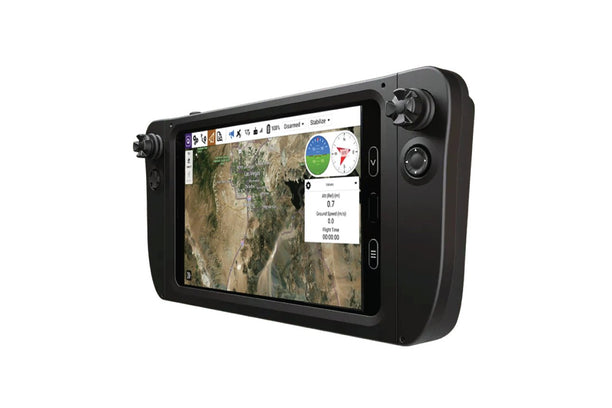

    Herelink RC Controller

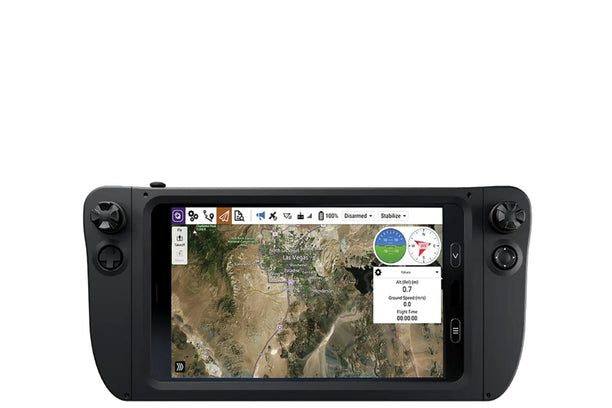

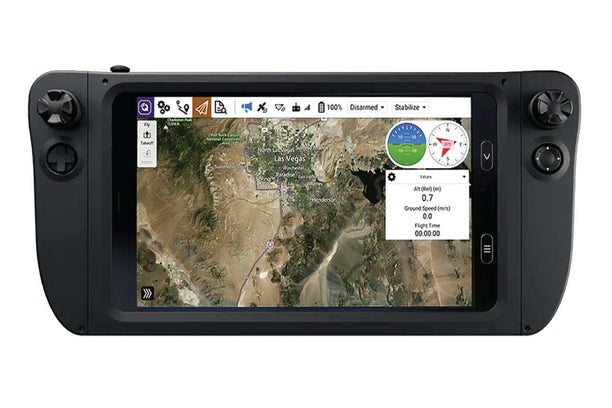

    Herelink Ground Station (+$999.95)

    Our most popular upgrade, the Herelink Ground Station takes your Aurelia X6 Standard to the next level. Purchase of the Herelink Transmission system features the following,

    • Plan flight routes, see your live location on a Google Maps interface, view a live Aurelia X6 Standard HD video feed, see Aurelia X6 Standard system status, and more with the Herelink Ground Station
    • The Herelink consolidates the FPV Camera System, your laptop computer and the Aurelia X6 Standard transmitter into one easy to use unit
    • The Herelink Ground Station operates Q Ground Control mission planner software
    • The Herelink Ground Station increases the range of the Aurelia X6 Standard to 5Km (3 miles)
    • The Herelink Ground Station upgrade includes the transmitter plus one HD camera installed on the Aurelia X6 Standard. The HD camera on the Aurelia X6 Standard streams live video directly to the Herelink Transmission System
    • The Herelink Ground Station has space for up to 2 HDMI video feeds (you can switch between both feeds on the main screen). The included HD camera uses 1 of the 2 HDMI video feeds, leaving another open for future use
    • This upgrade replaces the Radiomaster TX16S Transmitter with the Herelink Ground Station transmitter

    3 - Aurelia Assist

    Choose if you would like to purchase the Aurelia Assist Application and flight simulator for the drone. This application and simulator are not required to use the Aurelia X6 Pro but are nice to have.

    Premium Membership (+$599.95)

    • Flight Simulator Software
    • Manage flight logs
    • Manage maintenance logs
    • Pre and post-flight checklists
    • Ongoing premium Skype support
    • Product support in the app
    • Digital, searchable user manual
    • Spare parts and accessories available with one tap
    • $500 line of credit with Aurelia Aerospace for spare parts/accessories*
    • Free priority shipping on all spare product purchases to limit downtime
    • View drone laws by country before you travel
    • Application fee waived for international drone permit requests
    • 50% discount on engineering modification requests
    • Extensive weather report of flying area
    • Third-party applications

    * Total outstanding amount will be charged at the first of the next month

    4 - Choose Your Flight Controller

    Aurelia X6 Standard Pixhawk

    Pixhawk X2.1 Flight Control (Included)

    The Pixhawk X2.1 is the standard flight controller included with all of our products. It is a high quality, made in USA controller, and can be programmed with Ardupilot (default) or PX4.

    Control Zero Flight Control (+$399.95)

    Weighing in at a mere 5 grams, the Control Zero is one of the latest and most compact Pixhawk flight controllers on the market. Manufactured in the USA with vapor phase soldering, electromagnetic shielding, and conformal coating, the Control Zero is designed for performance, reliability and sophistication. It uses a high quality Bosch 3 axis accelerometer/gyroscope, triple redundant IMU, along with a 32 bit Cortex M4 processor, and F RAM memory (flash memory that performs as fast as RAM). The Control Zero can be programmed with Ardupilot (default) or PX4. If you want the latest in flight controller technology, this is it.

    Aurelia X8 Standard with Cube Blue

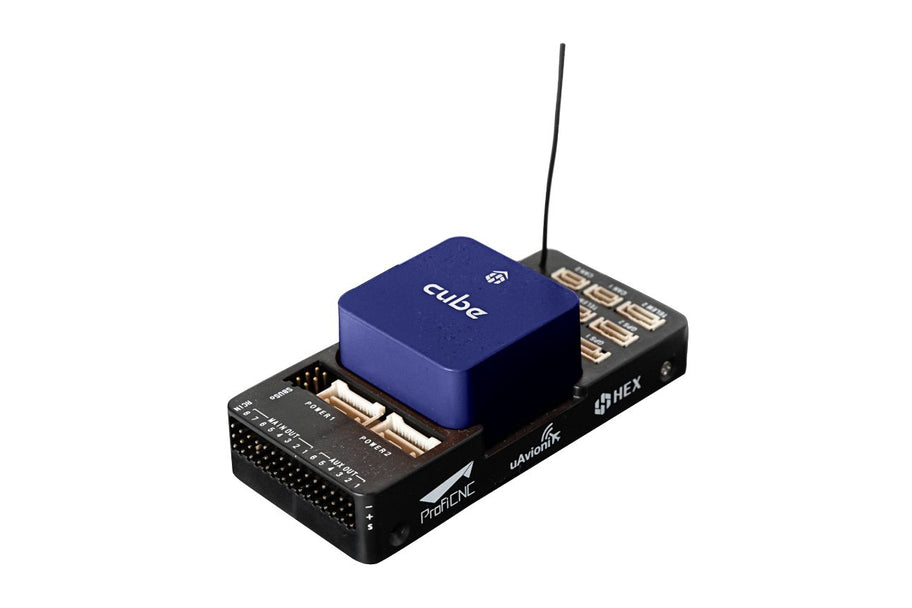

    Pixhawk Cube Blue
    With ADS-B (+$599.95)

    Based on the Cube series, the Pixhawk Cube Blue is the U.S made version of the Cube. It features triple redundant accelerometers, and gyroscopes, along with an onboard heater, designed to keep the IMU and sensors at consistent temperatures ensuring more consistent performance. The Cube Blue sits on top of an easy to use carrier board and features 1090 ADS-B, allowing you to see and avoid any aircraft in your vicinity.

    5 - Choose Your Payload

    The payload is perhaps one of the most important parts of your UAV. The Aurelia X6 Standard features a large payload bay, allowing for a wide variety of payloads up to 5 kg (11 lb.).

    Below are some of our most popular payload options, however if you have any questions about configuring your payload, or would like to add a payload that is not listed here, please do not hesitate to reach out to one of our support agents.

    Payload Release Mechanism
    Payload Release Mechanism
    Payload Release Mechanism
    $ 299.95 USD

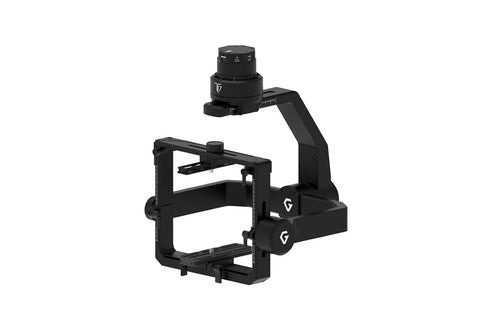

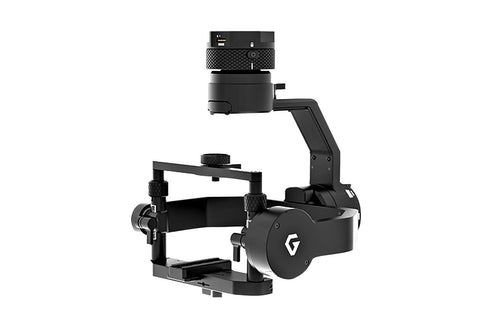

    Gremsy T1 V3 Camera Gimbal Bundle
    Gremsy T1 V3 Camera Gimbal Bundle
    Gremsy T1 V3 Camera Gimbal Bundle
    $ 2,499.95 USD
    Jetson Companion Computer Bundle
    Jetson Companion Computer Bundle
    Jetson Companion Computer Bundle
    $ 299.95 USD

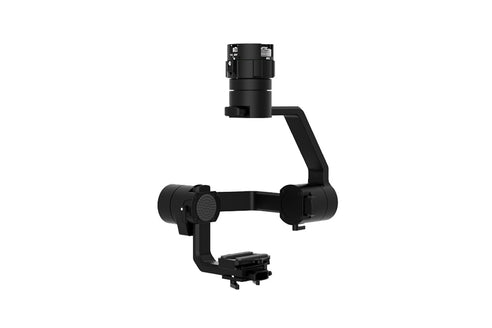

    Gremsy S1 Camera Gimbal Bundle
    Gremsy S1 Camera Gimbal Bundle
    Gremsy S1 Camera Gimbal Bundle
    $ 2,399.95 USD

    6 - Additional Options

    The following are additional parts and accessories for the Aurelia X6 Standard. If you have any questions about configuring these, please do not hesitate to reach out to one of our support agents.

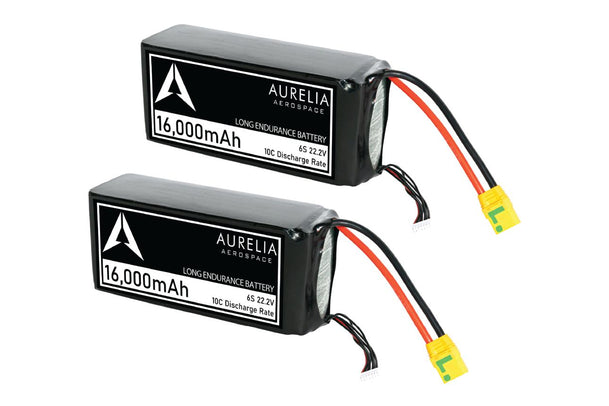

    Aurelia X6 Standard Extra Battery Set
    Aurelia X6 Standard Extra Battery Set
    Aurelia X6 Standard Extra Battery Set
    $ 399.95 USD
    Aurelia X6 RFD900X Telemetry Upgrade
    Aurelia X6 RFD900X Telemetry Upgrade
    Aurelia X6 RFD900X Telemetry Upgrade
    $ 399.95 USD

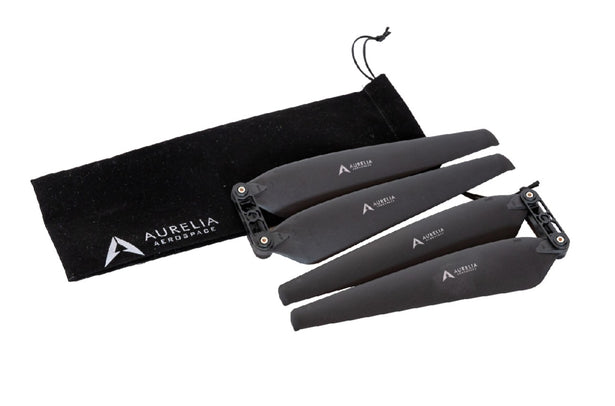

    Aurelia X6 Standard Propeller Set (6 Pcs)
    Aurelia X6 Standard Propeller Set (6 Pcs)
    Aurelia X6 Standard Propeller Set (6 Pcs)
    $ 249.95 USD

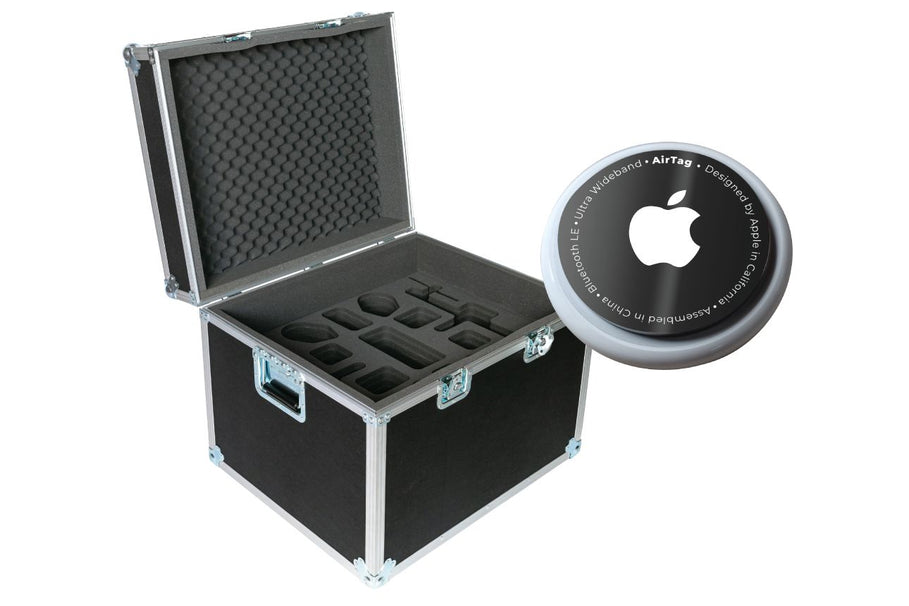

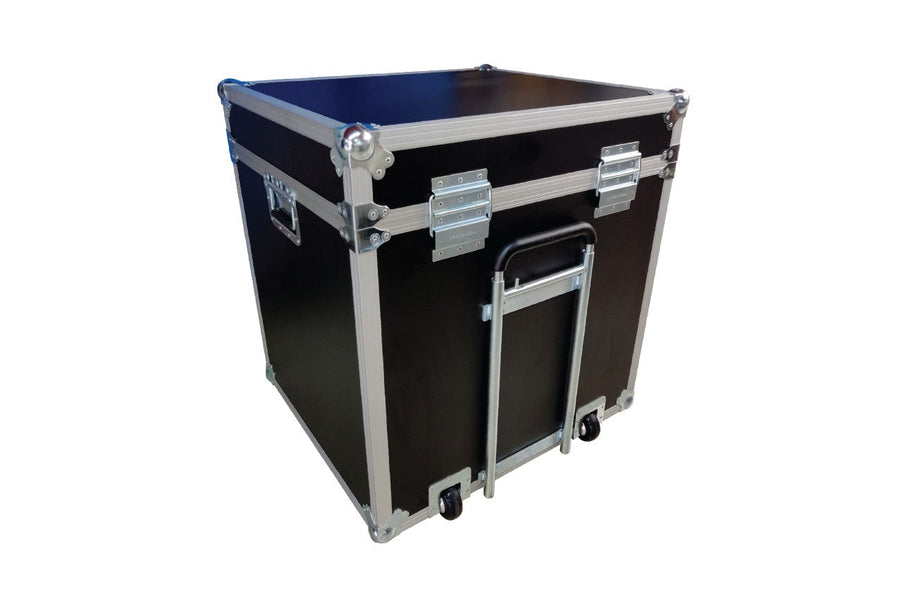

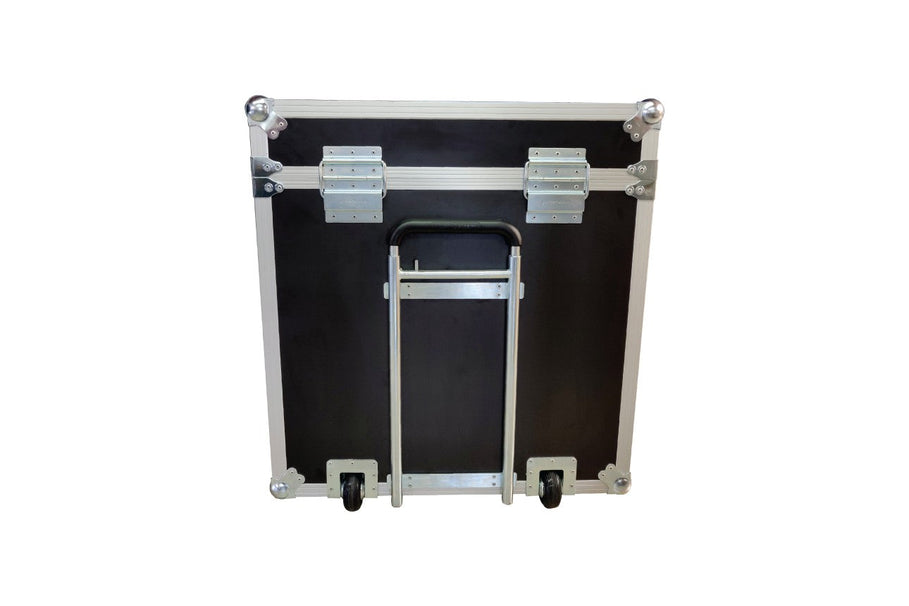

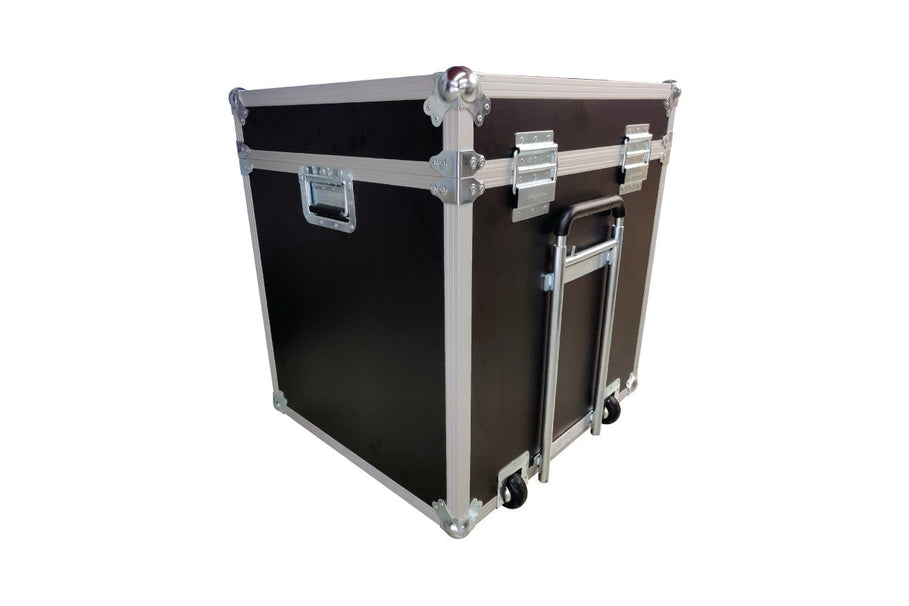

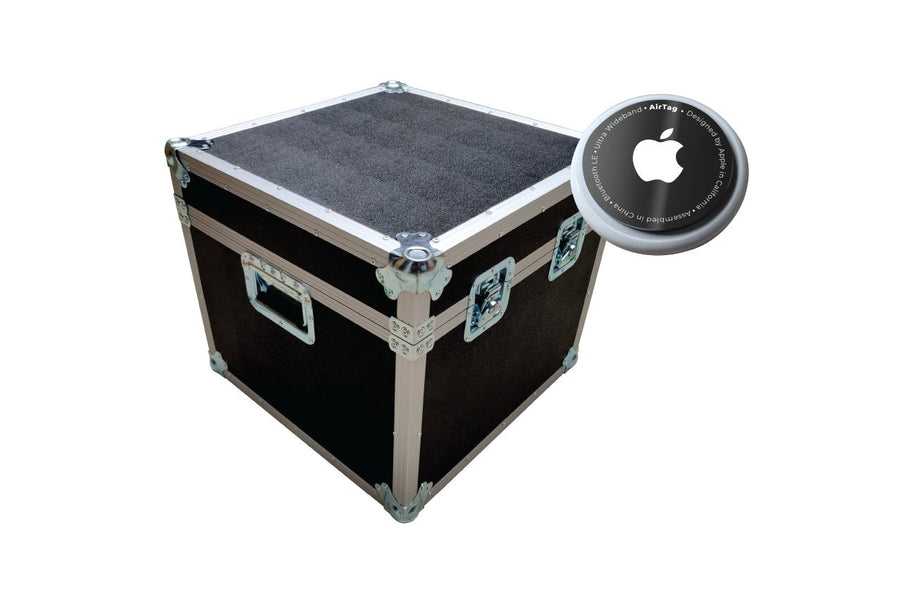

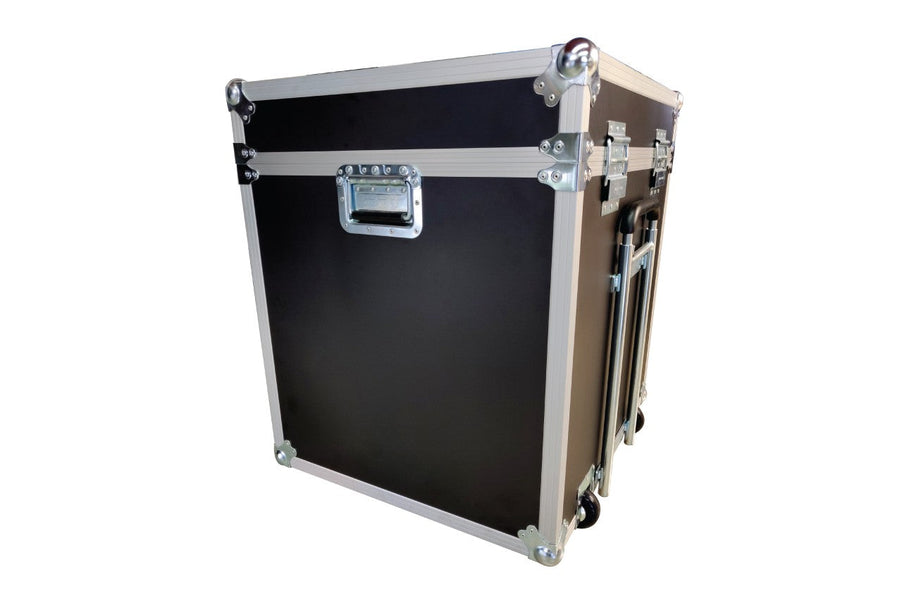

    Aurelia X6 Standard Travel Case
    Aurelia X6 Standard Travel Case
    Aurelia X6 Standard Travel Case
    $ 449.95 USD
    Aurelia X6 Standard PX4 Setup
    Aurelia X6 Standard PX4 Setup
    Aurelia X6 Standard PX4 Setup
    $ 0.00 USD
    Botlink 4G LTE Connection Module
    Botlink 4G LTE Connection Module
    Botlink 4G LTE Connection Module
    Botlink 4G LTE Connection Module
    $ 1,999.99 USD

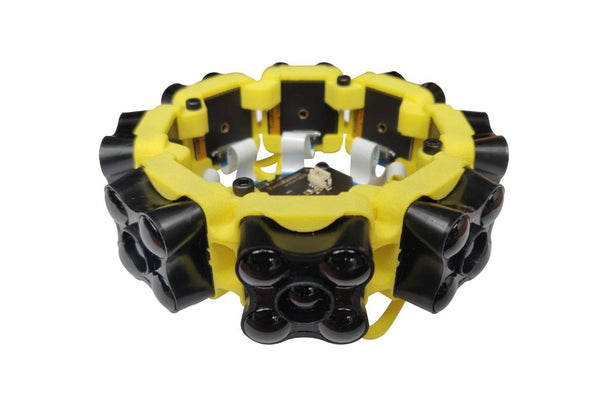

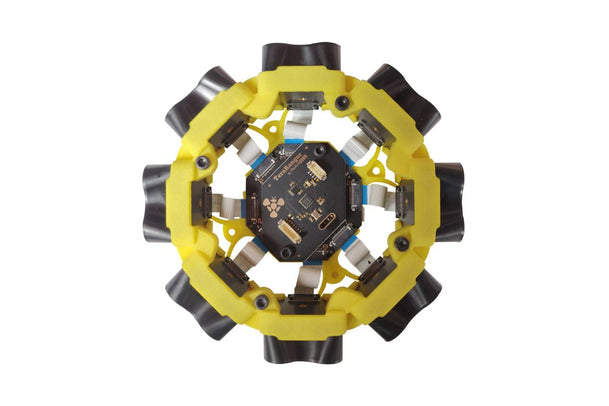

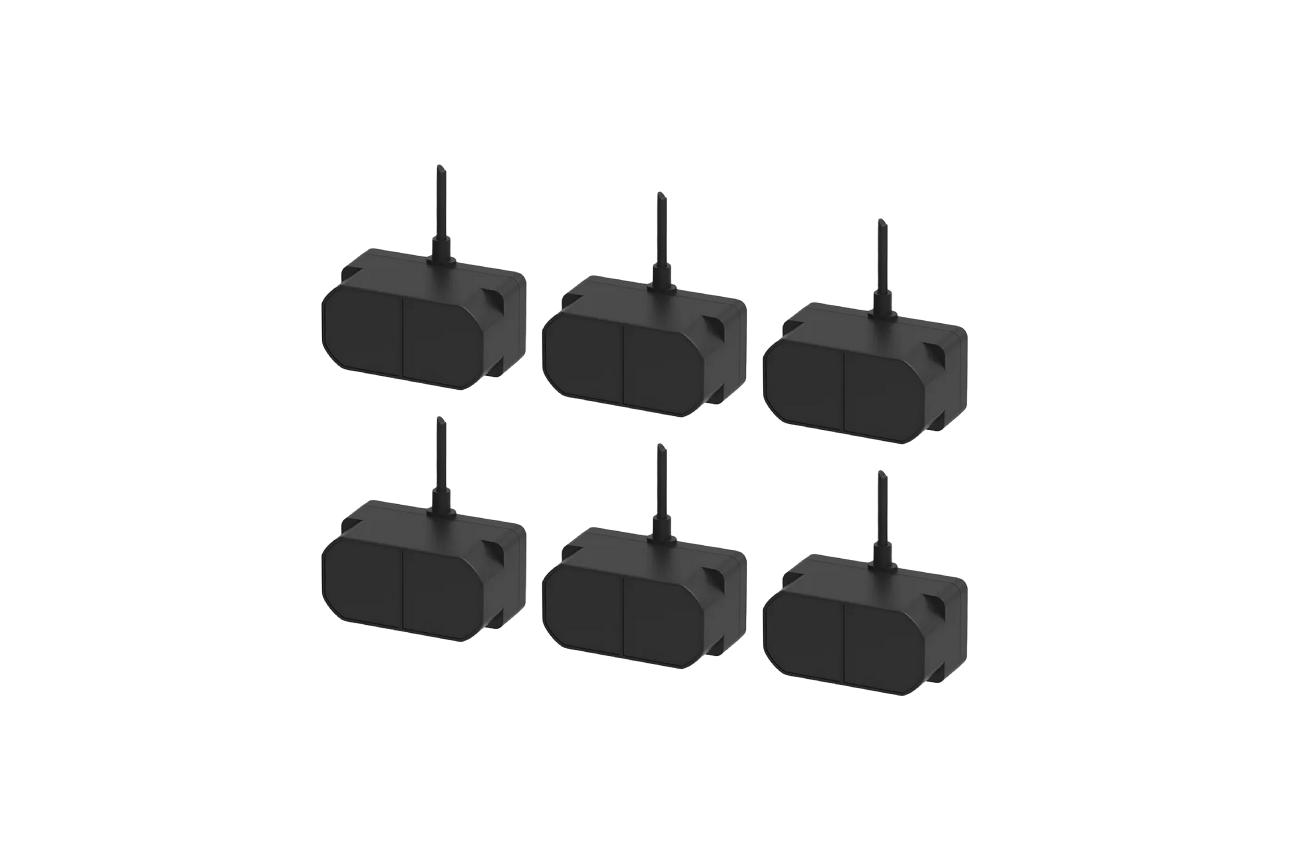

    Aurelia X6 Obstacle Avoidance LIDAR (4 sensors)
    Aurelia X6 Obstacle Avoidance LIDAR (4 sensors)
    Aurelia X6 Obstacle Avoidance LIDAR (4 sensors)
    $ 599.95 USD
    Aurelia X6 Standard Fast Charger
    Aurelia X6 Standard Fast Charger
    Aurelia X6 Standard Fast Charger
    $ 349.95 USD
    Aurelia X6 Standard Landing Pad
    Aurelia X6 Standard Landing Pad
    Aurelia X6 Standard Landing Pad
    $ 49.95 USD

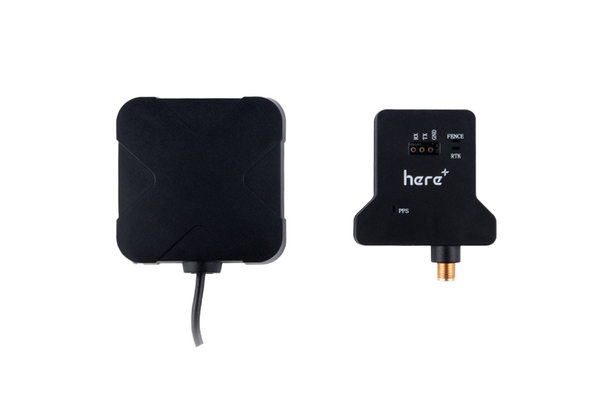

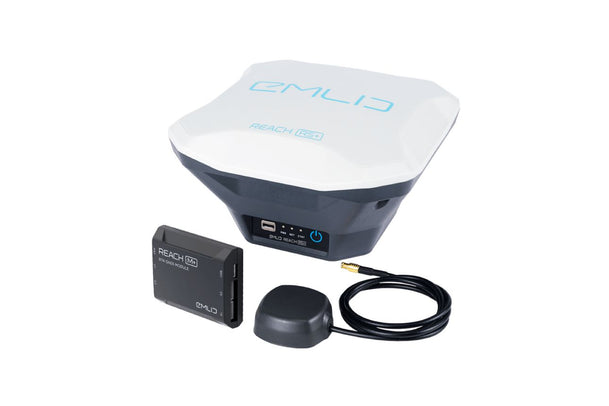

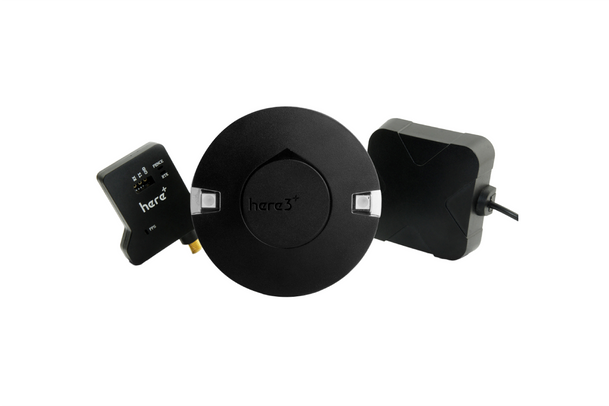

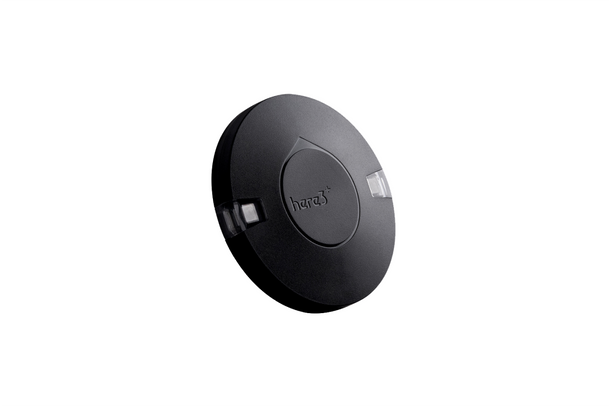

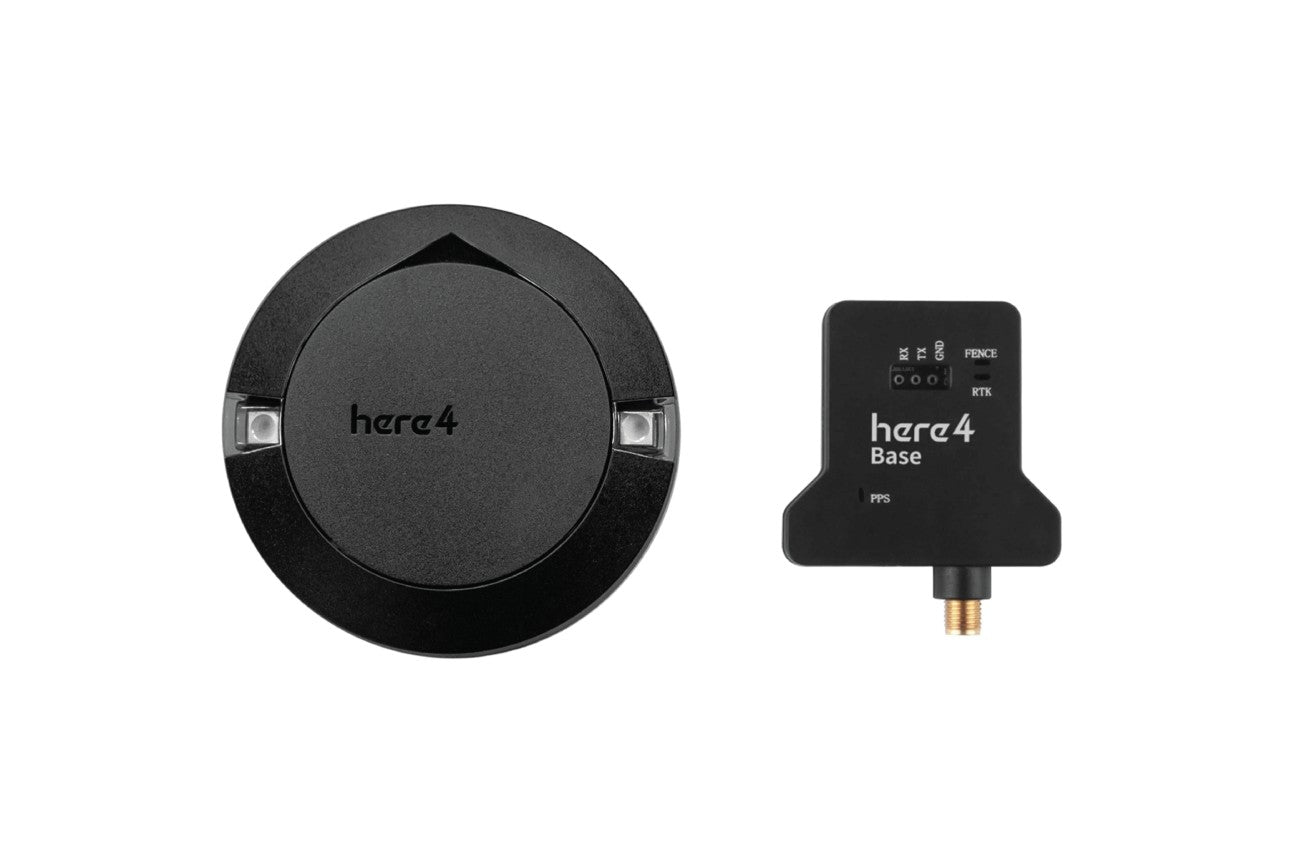

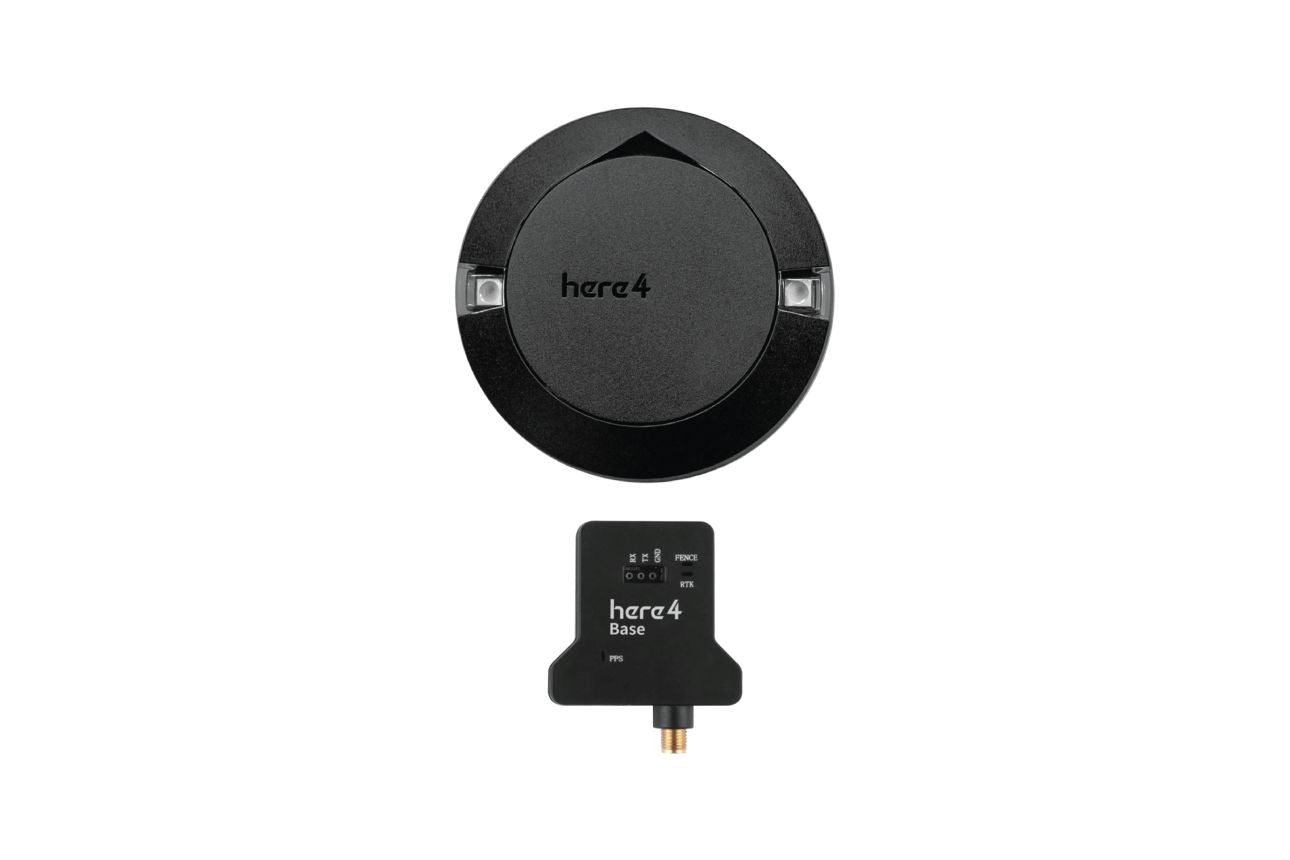

    Aurelia X6 Standard RTK Kit
    Aurelia X6 Standard RTK Kit
    Aurelia X6 Standard RTK Kit
    $ 999.95 USD
