DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE
DJI AGRAS MG-1P SPRAYING DRONE

    DJI AGRAS MG-1P SPRAYING DRONE

    $ 11,999.00 USD
    • 3 Kilometers Range (Ocusync)
    • Covers up to 6 hectares per hour
    • FPV camera included<
    • High precision radar with IP67 protection and obstacle avoidance
    • Compatible with MG App 2.0 and Pc GS Pro
    • New models of smart flights, semi-automatic and manual modes
    • Radio Control Remote fully updated
    • Tank Capacity 10 Liters
    • 13 minutes flight time
    • AUTHORIZED DJI DEALER
    • Global International Shipping!
    • Speak With A Product Professional Via Live Chat!

    We Guarantee The Best Price And Will Beat Any Competitor’s Price. We can answer any questions via the Live Chat at the bottom right of your screen or by calling +1-855-828-4002 24 hours/day, 7 days/week

    • Barcode:
    • 3 Kilometers Range (Ocusync)
    • Covers up to 6 hectares per hour
    • FPV camera included<
    • High precision radar with IP67 protection and obstacle avoidance
    • Compatible with MG App 2.0 and Pc GS Pro
    • New models of smart flights, semi-automatic and manual modes
    • Radio Control Remote fully updated
    • Tank Capacity 10 Liters
    • 13 minutes flight time
    • AUTHORIZED DJI DEALER
    • Global International Shipping!
    • Speak With A Product Professional Via Live Chat!

    We Guarantee The Best Price And Will Beat Any Competitor’s Price. We can answer any questions via the Live Chat at the bottom right of your screen or by calling +1-855-828-4002 24 hours/day, 7 days/week

    Agras

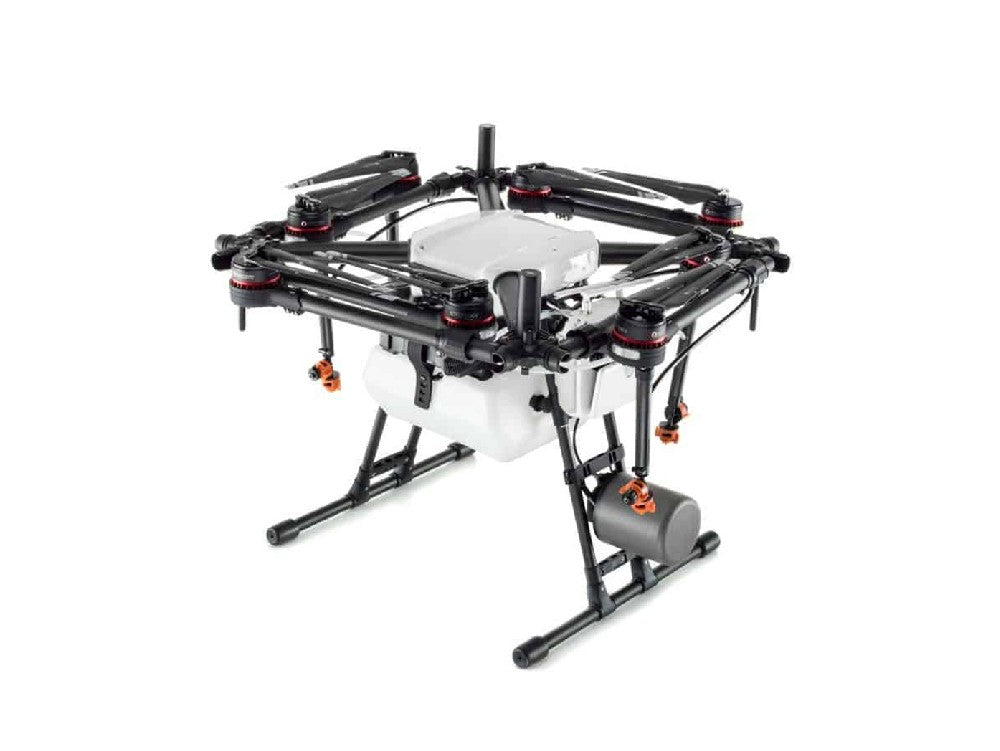

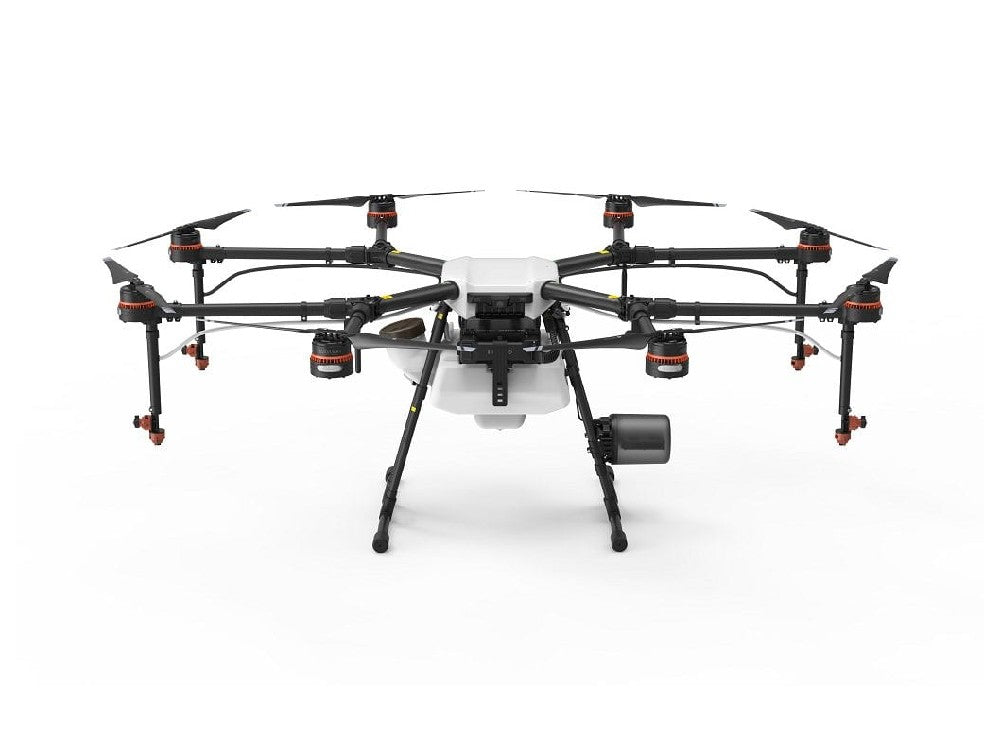

    DJI AGRAS MG-1P

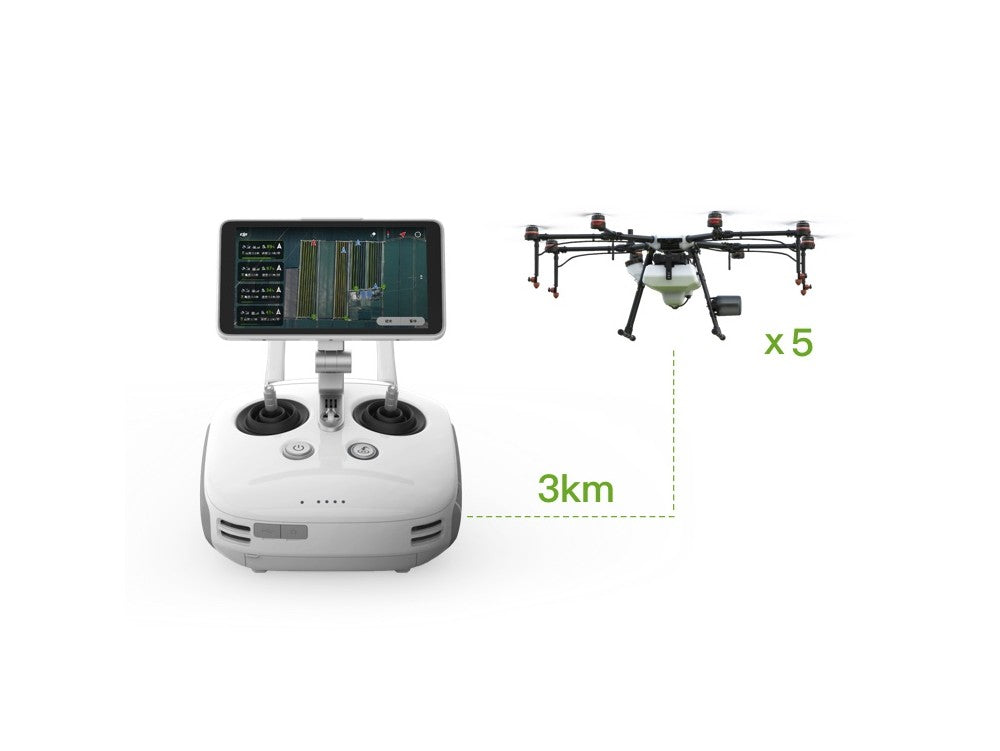

    A single MG-1P controller can control up to five MG-1P aircraft simultaneously, doubling the efficiency of single-pilot operations. This new intelligent remote controller extends the control range to up to 3 km and supports high-resolution video transmission within that range, ensuring flight safety. The new remote controller also supports 4G wireless communications, an interchangeable battery, and new antenna design, providing even more convenience for daily operations

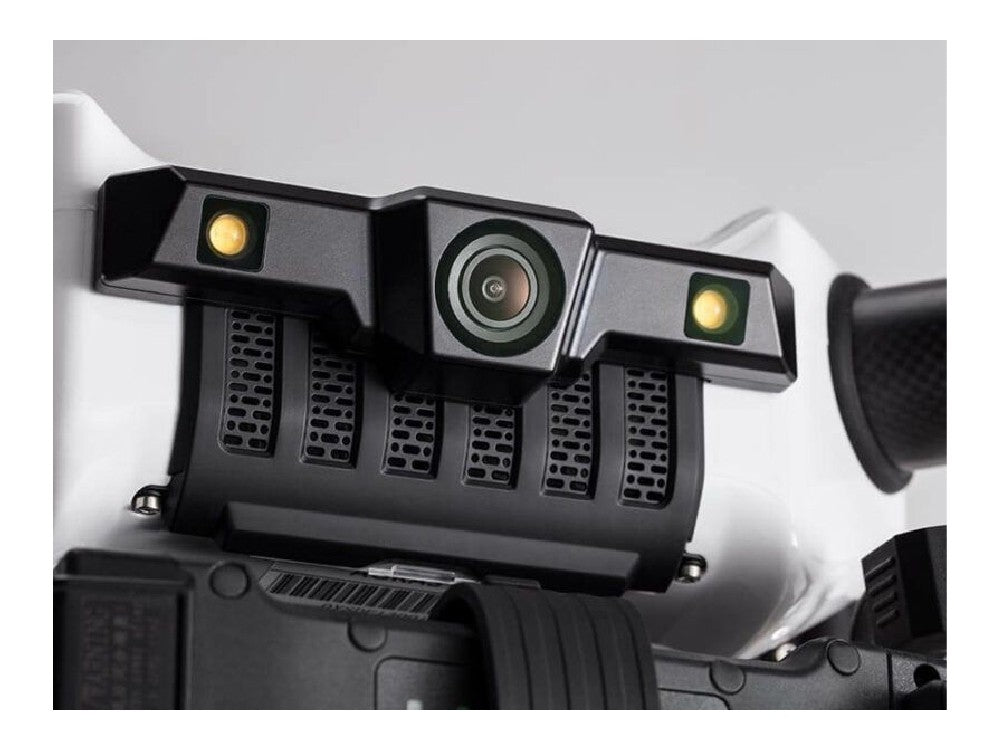

    The new Agras MG 1P unmanned aircraft is equipped with a wide-angle FPV camera, observing the operating system on the front to provide real references for the operation area of the network planning, the radar of the high precision of the second generation, integration of altitude stabilization radar modules forward, backward and downward and obstacle avoidance module, improvement of tracking detection and ground tracking functions. The DJI MG-1S Professional Crop Sprayer comes fully equipped with all the required accessories for flight, is ready to fly out of the box, and has been pre-tested by our team of experienced product professionals!


    Video: In Action

    Here's a video of the DJI Agras MG-1P Crop Sprayer in action.


    Features



    • Payload Capacity up to 10kg liquid payloads including pesticides, fertilizers, herbicides
    • Speed and power 40-60x Faster than manual spraying operations
    • Foldable Design allows for Stow-And-Go and simple transportation
    • Includes A3 Flight Controller
    • Improved Radar Sensing
    • Increased water and dust resistance
    • Real-Time Safety Features empty tank warning, operation resumption, system data protection
    • Intelligent Flight Modes: Smart Mode/Manual Plus/Manual Mode
    • Nozzles now have flow sensors for added data and efficiency
    • Terrain Follow scans the terrain below in real-time, adjusts constantly to maintain height above crops
    • Dedicated Remote Controller that can manage 5 Agras systems at the same time.
    • Ready To Fly: everything you need to fly included, pre-tested by our experienced technicians

    MAXIMUM EFFICIENCY

    The MG-1 ‘s powerful propulsion system allows the aircraft to carry up to 10 kg liquid payloads, including pesticides and fertilizers. The combination of speed and power means that an area of 4,000-6,000 m² can be covered in just 10 minutes, or 40 to 60 times faster than manual spraying operations. The intelligent spraying system automatically adjusts its spray according to the flying speed so that an even spray is always applied. This way, the amount of pesticide or fertilizer is precisely regulated to avoid pollution and economize operations.

    Image result for sprayer icon

    40-60 times faster than manual spraying

    10kgPayload

    Image result for Liquid tank icon

    7-10Acres / Hour

    Image result for crop icon

    RELIABILITY AND LONGEVITY

    Equipment used in plant protection operations is susceptible to dust and corrosion, leading to high maintenance costs and shortened lifespans. To counteract degradation, the MG-1 is designed with a sealed body and an efficient, integrated centrifugal cooling system. As it flies, the surrounding air enters the aircraft body via the front inlet, and a triple filter system keeps dust and debris from entering. The air then passes through each of the aircraft’s arms to the motors, capturing heat from all components and the entire structure before exiting and dissipating. The combination of cooling and filtering increases the expected lifespan of each motor by up to three times.


    ACCURATE SPRAYING

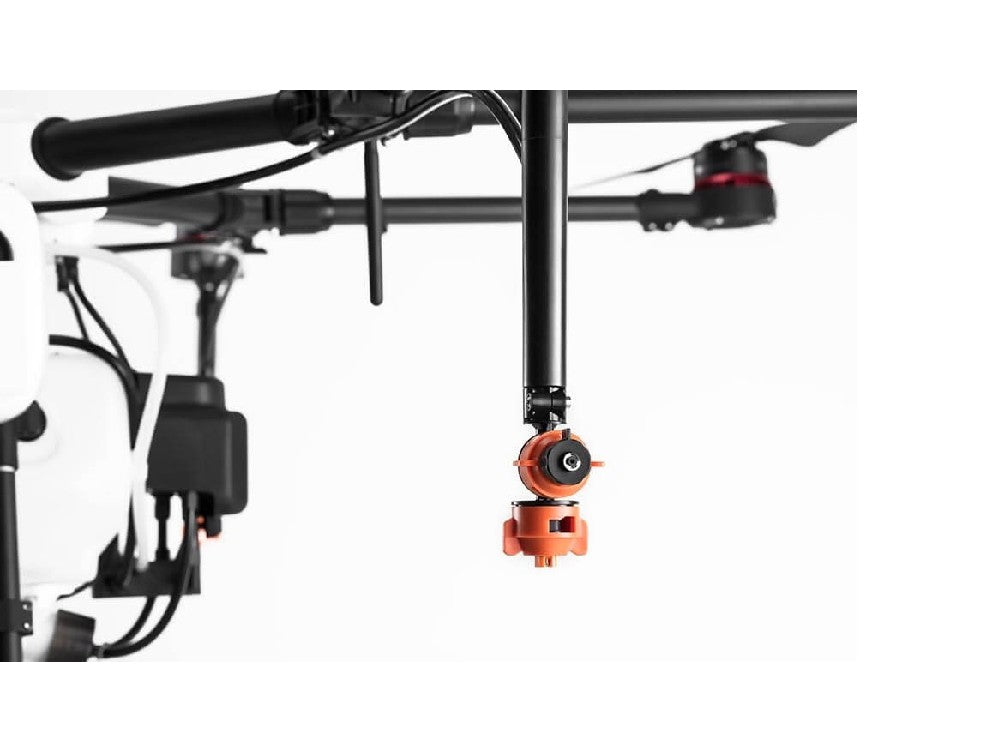

    Spray nozzles can be chosen according to the properties of each liquid to optimize atomization, energy efficiency, and the amount of liquid sprayed. The included nozzles are resistant to wear and can be used for thousands of hours without degradation. In total, the MG-1 has four nozzles, each placed directly below a motor. The downward airflow generated by the propellers accelerates the spray, increasing it's reach

    Interchangeable Nozzle

    Image result for sprayer system icon

    Smart Spraying

    Image result for sprayer system icon

    EASE OF USE

    The advanced flight controller integrated with the aircraft instantly and precisely responds to pilot inputs. Choose between three flight modes: Smart mode, Manual Plus mode and Manual mode, according to terrain and the specific requirements of each mission. In Smart mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the MG-1 not only the most efficient but also the most easy to use spraying solution. In Manual Plus Mode, the aircraft performs the same turns at the press of a button as it does automatically under the Smart mode, allowing for planning to be done on the fly for fields of irregular shape. Under Manual mode, the pilot freely navigates the aircraft.


    INTELLIGENT MEMORY

    The MG-1 automatically records its current coordinates and remembers its past coordinates as it makes its way across the field. In case an operation is interrupted, for example, due to depleted battery or spraying liquid, users can quickly land and resume flight from the last recorded point after changing the battery or refilling its tank.

    Image result for warning icon

    Empty Tank Warning

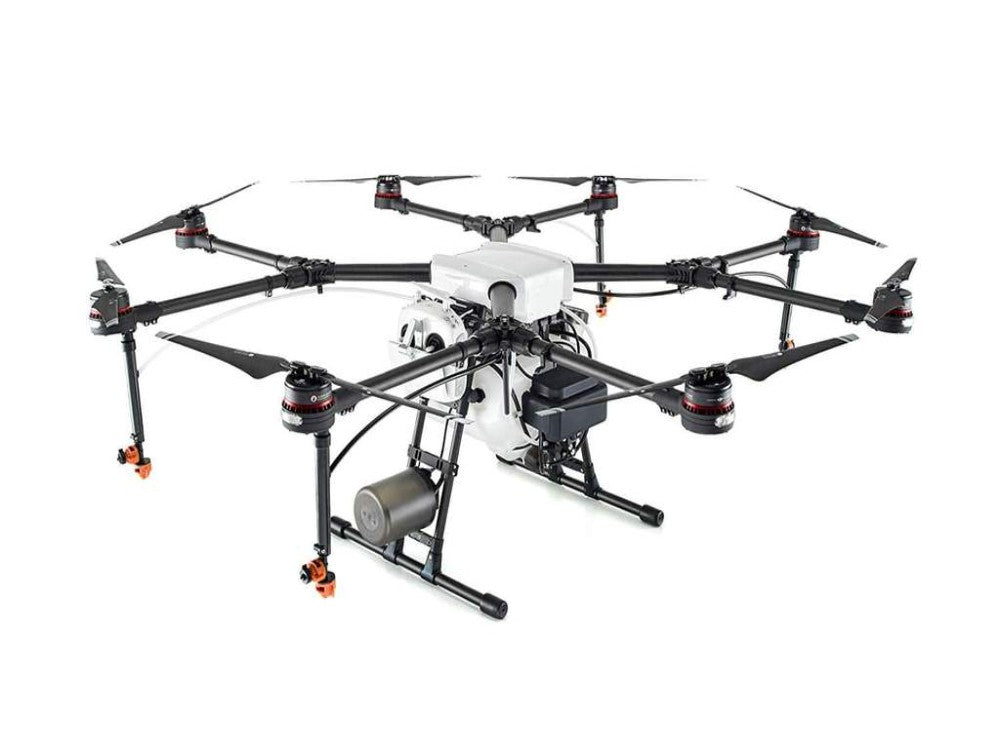

    FOLDABLE DESIGN

    The MG-1 uses a Y-shaped folding design that allows for installation without the use of any additional tools. Its motor arms fold inward, making the aircraft compact and easy to transport in the trunk of a car. Able to withstand harsh conditions, the MG-1’s airframe is made of light, yet durable high-strength carbon fiber.


    PARTS AND ACCESSORIES

    Speak with our experienced product professionals via the chat function at the bottom of the screen if you would like to add any accessories such as additional batteries, propellers, or anything else to your order. We have a wide range of compatible parts that can improve your flight experience!



    DJI AGRAS MG-1S SPECS

    • Diagonal Wheelbase :- 1520 mm
    • Frame Arm Length :- 625 mm
    • Dimensions :- 1471mm x 1471mm x 482mm (arm unfolded, without propellers)
      780mm x 780mm x 482mm (arm folded)

    MOTOR

    • Stator Size :- 60mm x 10 mm
    • KV :- 130 rpm/V
    • Max Thrust :- 5.1 kg/rotor
    • Max Power :- 770 W
    • Weight (with cooling fan) :- 280 g

    LIQUID TANK

    • Volume :60mm x 10 mm
    • Standard Operating Payload :- 10 L
    • Max Battery Size :- 10 kg
    • Max Power :- 151mm x 195mm x 70mm
    • Weight (with cooling fan) :- 280 g

    NOZZLE

    • Model :- XR11001
    • Quantity :- 4
    • Max Spray Speed :- 0.43 L/min (per nozzle, for water)
    • Spray Width :- 4 - 6 m (4 nozzles, 1.5 – 3 m above the crops)
    • Droplet Size* :- XR11001: 130~250 μm*Droplet size may vary according to operation environment and spraying speed.

    FEATURES

    • Total Weight (without batteries) :- 8.8 kg
    • Standard Takeoff Weight :- 22.5 kg
    • Max Takeoff Weight :- 24.5 kg (@ sea level)
    • Max Thrust-Weight Ratio :- 1.81 (with 22.5 kg takeoff weight)
    • Power Battery :- DJI Designated Battery (MG-12000)
    • Max Power Consumption :- 6400 W
    • Hovering Power Consumption :- 3250 W (with 22.5 kg takeoff weight)
    • Hovering Time :- 24 min (@ with 12.5 kg takeoff weight)
    • Max Operating Speed :- 10 min (@ with 22.5 kg takeoff weight)
    • Max Flying Speed :- 8 m/s , 22 m/s
    • Recommended Operating Temperature :- 0 to 40℃

    REMOTE CONTROLLER

    • Model :- GL690B(Japan Only), GL658C
    • Operating Frequency :- 2.400 - 2.483 GHz
    • Max Transmission Range (unobstructed, free of interference) :- 1km
    • EIRP
    • 100 mW @ 2.4 GHz
    • Built-in Battery :- 6000 mAh, 2S LiPo
    • Charging :- DJI charger
    • Output Power :- 9 W
    • Operating Temperature Range :- 10 to 40℃
    • Storage Temperature Range :- Less than 3 months: -20 to 45℃
      More than 3 months: 22 to 28℃
    • Charge Temperature Range :- 0 to 40℃

    Purchase With Confidence

    PO Terms

    We can accept Net 30 purchase orders from most customers, with a few exceptions. Our team will determine eligibility on a case by case basis. Only pay for the drone when you have received it and are satisfied.

    30 Day Money Back Guarantee

    We know you will love our products, but in the case you are not happy with the drone for any reason within the first 30 days, return it to us for a full refund.

    EDU/GOV Discounts

    Are you a school, university, government agency or contractor? You may qualify for discounts depending on what you purchase.

    Ask one of our sales agents through chat or e-mail, which would love to inform you about the possibilities for you.


    Join Our Customers In 100+ Countries

    Brand List


    Specifications

    • 2 Mile (3.2Km) Range
    • Approximately 25 Minutes Flight Time
    • Strong Lightweight Carbon Fiber Drone Body
    • Pixhawk Flight Controller Allows For Autonomous Programmed Flights
    • Can Be Fitted With FPV, Or Additional Equipment And Options Depending On Customer Requirements
    • 60 Centimeter Diameter (23 Inches)



    WHAT'S INCLUDED?

    Your purchase of DJI Agras MG-1S Professional Crop Sprayer includes:

    • Aircraft Body x 1
    • Multidirectional Radar x 1
    • Landing Gear Leg (Left) x 1
    • Landing Gear Leg (Right) x 1
    • Remote Controller x 1
    • Remote Controller Charger x 1
    • Power Cable x 1
    • Remote Controller Lanyard x 1
    • Micro USB Cable x 1
    • Anti-drop Plate x 2
    • Propeller Blade Pair (CW) x 4 *
    • Propeller Blade Pair (CCW) x 4 *
    • Propeller Holder x 4
    • Air Filter x 1 *
    • Hose Clip x 1
    • Power Plug Set x 1 *
    • Hex Keys: 1.25mm x 1, 2.5mm x 1, 3.0mm x 1
    • Screws, Nuts and Washers: M3 x 6; M3 x 10; M3 x 18; M3 x 22; Propeller Washers *; M4 Screws and Nuts <*t/li>
    • Manuals: In The Box; Quick Start Guide; Disclaimer and Safety Guidelines

    AGRAS MG-1S SPRAYING SYSTEM

    • Spray Tank x 1
    • Sprinkler Kit x 2 (with XR11001VS Nozzles)
    • Hose Clamps: Clamp A (Ø 11mm) × 4 *; Clamp B (Ø 8.4mm) × 10; Clamp C (Ø 7.8mm) × 4 *
    • Fender x 1
    • Spray Tank Plug (Left) x 2*
    • Screws and Nuts: M3 x 5; M3 x 10 (Plus); M4 x 8; T3 x 8; Nuts for Hose *

    User Manual
